136G1973 AAF006A400T4E21HXXGC3XXSXXXXAXBXCFXXXD0 - ÅLAND DRIVES & CONTROLS
  • SKU: 136G1973

136G1973 AAF006A400T4E21HXXGC3XXSXXXXAXBXCFXXXD0

GET A QUOTE
AAF006A400T4E21HXXGC3XXSXXXXAXBXCFXXXD0

AAF006A400T4E21HXXGC3XXSXXXXAXBXCFXXXD0

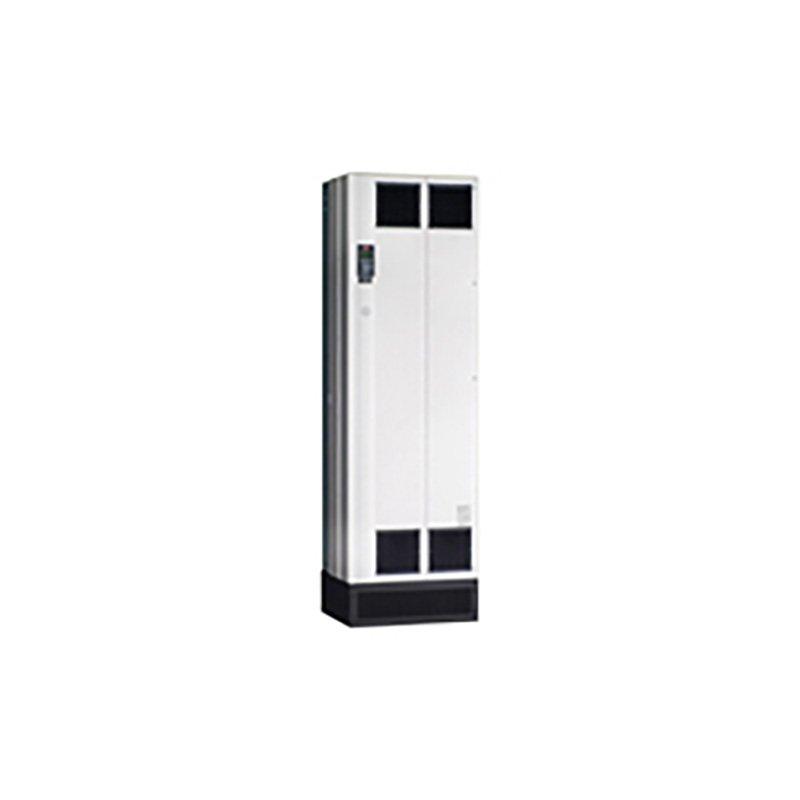

Advanced Active Filter AAF
380-480 VAC, 400Amp correction, IP21 / Type 1,
No RFI Filter, Mains Disconnect + fuse


Model code : AAF006A400T4E21HXXGC3XXSXXXXAXBXCFXXXD0

Danfoss Advanced Active Filters eliminate harmonic
distortion from non-linear loads and improve system power.


Gross weight 575 kg
Net weight 453 kg
Volume 0 l
EAN 5710108584115


VLT® ADVANCED ACTIVE FILTER AAF SERIES
Product View (Switch) GLBL Global (Standard)
Product Group AAF Advanced Active Filter AAF
VLT Series 006 006
Current Rating A400 400Amp correction
Phase T Three phase
Mains Voltage 4 380-480 VAC
Enclosure E21 IP21 / Type 1
RFI Filter HX No RFI Filter
Brake - Safe Stop X No brake chopper
Display G Graphical Control Panel
Coating PCB C Coated PCB
Mains Option 3 Mains Disconnect + fuse
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Options
B Option BX No B Option
C0 Options MCO CF Active Filter Guard
C1 Options X No C1 option
C Option Software XX No software option
D Option D0 24V Backup
Frame Size E1 (E1) E1-Frane
Typecode Part 1 AAF006A400T4E21HXXGC3XXSXXXXAX
Typecode Part 2 BXCFXXXD0
Product Catalog NO_VIEW NO VIEW
Calculated Gross Weight [kg] 575
Calculated Net Weight [kg] 453
Material Gross Weight 575
Material Net Weight 453
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 AAF006A400T4E21HXXGC3XXSXXXXAX
Modelcode02 BXCFXXXD0
