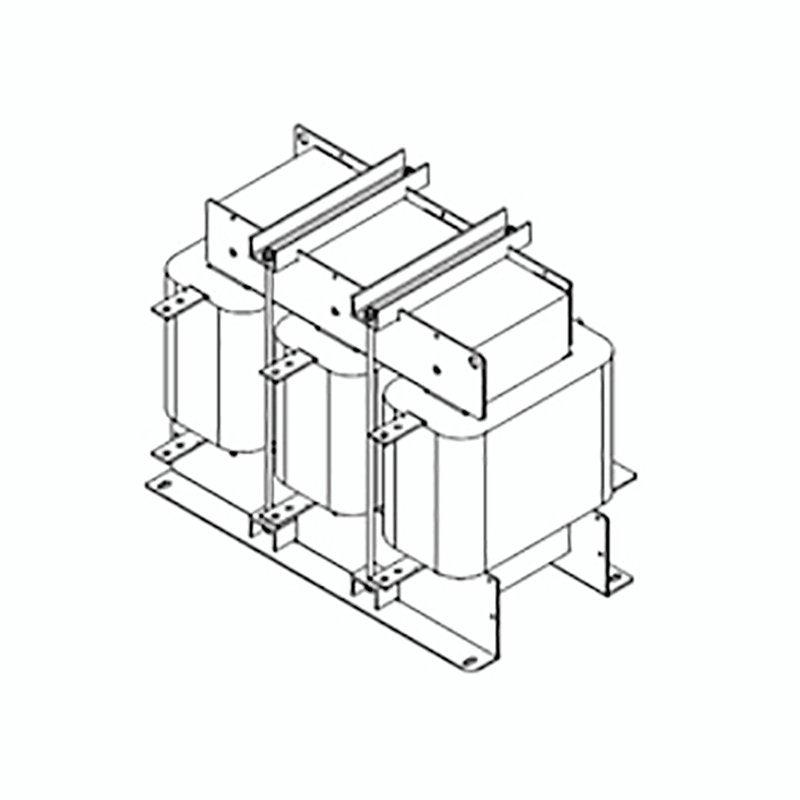

Sinus filter for FC 100 / FC 200 and FC 300
Degree of protection: IP00
Nominal power (525 - 600V): 450-480 kW
Nominal power (690V): 560-630 kW
Continuous rated current: 660 A.
Max. Output frequency: 100 Hz
Max. Power loss: 3000 W
Dimensions HxWxD: 690 X 800 X 713 mm
Weight: 745 kg
