VACON0020-3L-0012-2-CP-R02
VACON® 20CP
-12,5 AMP, 208 - 240 Vac
(+DBIN)Brake Chopper, No keypad
C4 System Component, MS03
Other options according to Model code

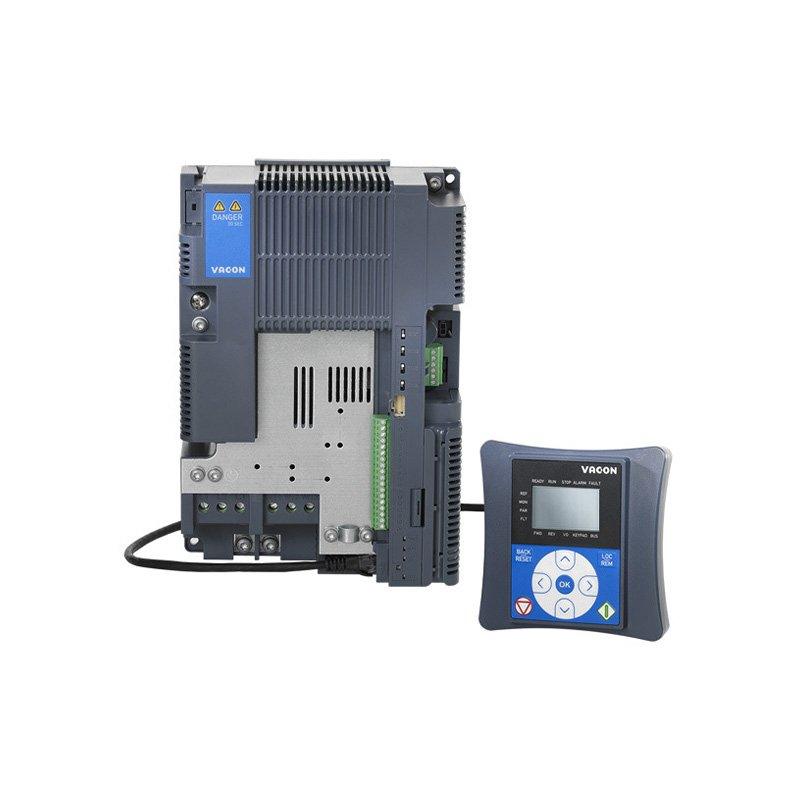

VACON® 20 Cold Plate is an open-frame, cold-plate drive.
It is designed to use any type of cooling available inside a cu.
| Gross weight | 4 kg |
| Net weight | 2.3 kg |
| Volume | 0.528 hl |
| EAN | 5710108836078 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | VACON | VACON |
| Product Series | 0020 | Vacon 020 |
| Input type | -3L | -3L |
| Current | -0012 | 12 |
| Current Description | -12,5 AMP | |
| Mains Voltage | -2 | 208 - 240 Vac |
| Segment | -CP | -CP |
| Regional | -R02 | North America |
| Customized | +BM25 | Vacon0020 product |
| Brake | +DBIN | (+DBIN)Brake Chopper |
| SW Package | +F0117 | (+F0117)Multipurpose System SW |
| E Slot Option Board | +SE00 | No board |
| Application | +A0000 | (+A0000) No Additional App |
| Keypad | +HMNO | No keypad |
| Additional Equipment A | +Q000 | No add. Equipment A |
| Additional Equipment B | +Q000 | No add. Equipment B |
| Terminal Box | +T000 | No Terminal Box |
| Frequency setting | +LS60 | (+LS60) 60 Hz |
| Display Units | +LSUS | US Units of Measure |
| Shipping Package | +GSB2 | Multi Packaging Material |
| EMC level | +EMC4 | C4 System Component |
| UL Approval | +GAUL | (+GAUL) UL Approval |
| CE Approval | +GACE | (+GACE) CE Approval |
| C-tick Approval | +GACT | (+GACT) C-Tick Approval |
| KC Approval | +GAKC | (+GAKC) KC Approval |
| Frame Size | MS3 | MS03 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | VA20CP-3L-0012-2-CP+BM25 | |
| Typecode Part 2 | -000000461 | |
| Modelcode01 | VACON0020-3L-0012-2-CP | |
| Modelcode02 | -R02 | |
| Calculated Net Weight [kg] | 3 | |
| Calculated Gross Weight [kg] | 3.21 | |
| Dimensions WxHxD [mm] | 161X240X83 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| ECCN US | 3A999.a | |
| ECCN EU | X.A.I.003 |
