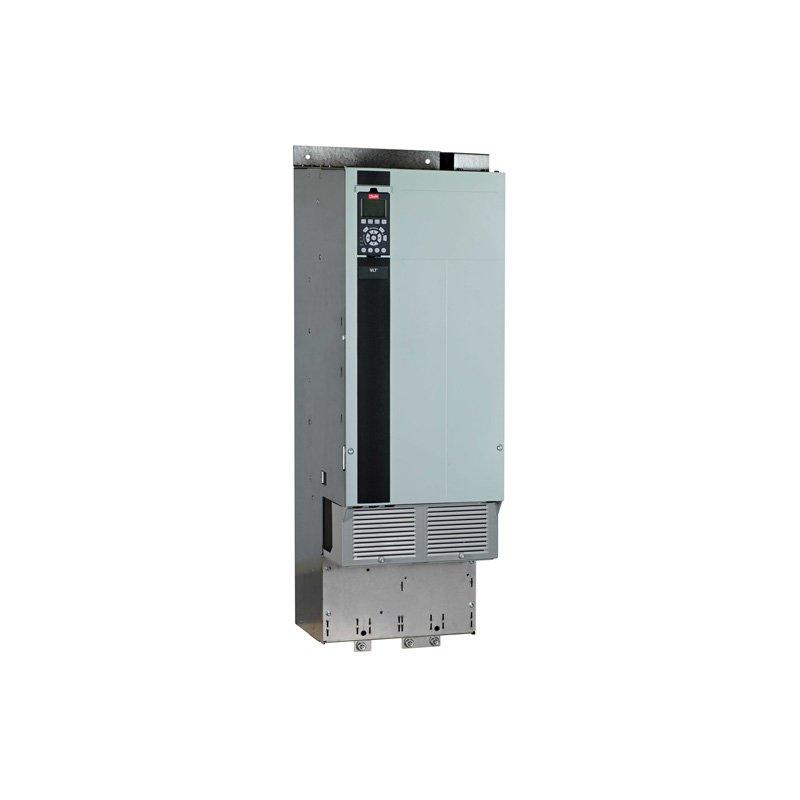

Frequency converter
FC-103N132T4E20H4XGC7XXSXXXXAXBKCXXXXD0
VLT® Refrigeration Drive FC-103
(N132) 132 KW / 200 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI filter Class A1
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, MCB-101 General purpose I/O
No C1 option, 24V DC backup
Frame: D3H
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 62.3 kg |
| Net weight | 62 kg |
| Volume | 0 l |
| EAN | 5710108983550 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | N132 | (N132) 132 KW / 200 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H4 | RFI filter Class A1 |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BK | MCB-101 General purpose I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | 24V DC backup |
| Frame Size | D3H | D3H |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103N132T4E20H4XGC | |
| Typecode Part 2 | 7XXSXXXXAXBKCXXXXD0 | |
| Power 110% (NO) [KW] | 132 | |
| Height w/ Regen/Loadshare [mm] | 1004,0 | |
| Height [mm] | 909,0 | |
| Width w/ no C options [mm] | 250,0 | |
| Depth [mm] | 375,0 | |
| Depth with Option A/B [mm] | 375,0 | |
| kVA | 180 | |
| Power Loss NO [W] | 2949 | |
| Power Loss NO [W] | 2719 | |
| Continuous Current (NO) [A] | 260 | |
| Intermittent Current (NO) [A] | 286 | |
| Continuous Current (NO) [A] | 240 | |
| Intermittent Current (NO) [A] | 264 | |
| Calculated Gross Weight [kg] | 62.3 | |
| Calculated Net Weight [kg] | 62 | |
| Material Gross Weight | 62.3 | |
| Material Net Weight | 62 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103N132T4E20H4XGC | |
| Modelcode02 | 7XXSXXXXAXBKCXXXXD0 |
