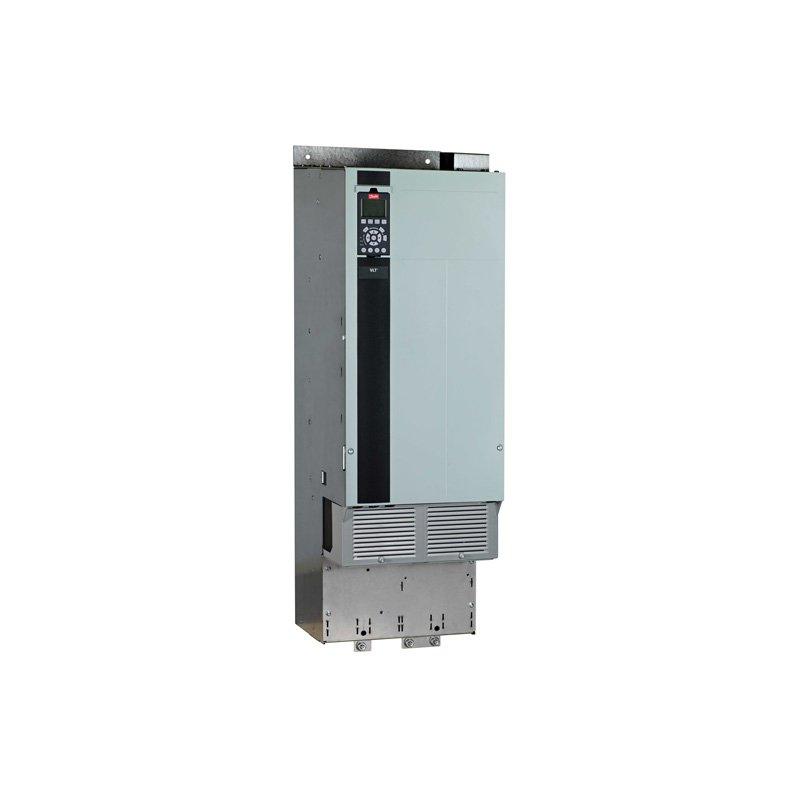

Frequency converter
FC-202N200T4E20H2XGR7XXSXXXXAXBKCXXXXDX
VLT® AQUA Drive FC-202
(N200) 200 KW / 300 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB 3C3 + Ruggedised, Fuse
Latest release std. SW.
No A Option, MCB-101 General purp. I/O
No C1 option, No D option
Frame: D4H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 125.3 kg |
| Net weight | 125 kg |
| Volume | 0 l |
| EAN | 5715253348964 |
| Product View (Switch) | NAMC | North America (Regional) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N200 | (N200) 200 KW / 300 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | R | Coated PCB 3C3 + Ruggedised |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BK | MCB-101 General purp. I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | D4H | D4H |
| Typecode Part 1 | FC-202N200T4E20H2XGR | |
| Typecode Part 2 | 7XXSXXXXAXBKCXXXXDX | |
| Product Catalog | NAMC | North America (Regional) |
| Power 150% (HO) [KW] | 160 | |
| Power 110% (NO) [KW] | 200 | |
| Height [mm] | 1122,0 | |
| Height w/ Regen/Loadshare [mm] | 1268,0 | |
| Width w/ no C options [mm] | 350,0 | |
| Depth [mm] | 375,0 | |
| Depth with Option A/B [mm] | 375,0 | |
| kVA | 274 | |
| Power Loss NO [W] | 4116 | |
| Power Loss NO [W] | 3569 | |
| Power Loss HO [W] | 3093 | |
| Power Loss HO [W] | 2872 | |
| Continuous Current (NO) [A] | 395 | |
| Intermittent Current (NO) [A] | 435 | |
| Continuous Current (NO) [A] | 361 | |
| Intermittent Current (NO) [A] | 397 | |
| Continuous Current (HO) [A] | 315 | |
| Intermittent Current (HO) [A] | 472 | |
| Continuous Current (HO) [A] | 302 | |
| Intermittent Current (HO) [A] | 453 | |
| Calculated Gross Weight [kg] | 125.3 | |
| Calculated Net Weight [kg] | 125 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N200T4E20H2XGR | |
| Modelcode02 | 7XXSXXXXAXBKCXXXXDX |
