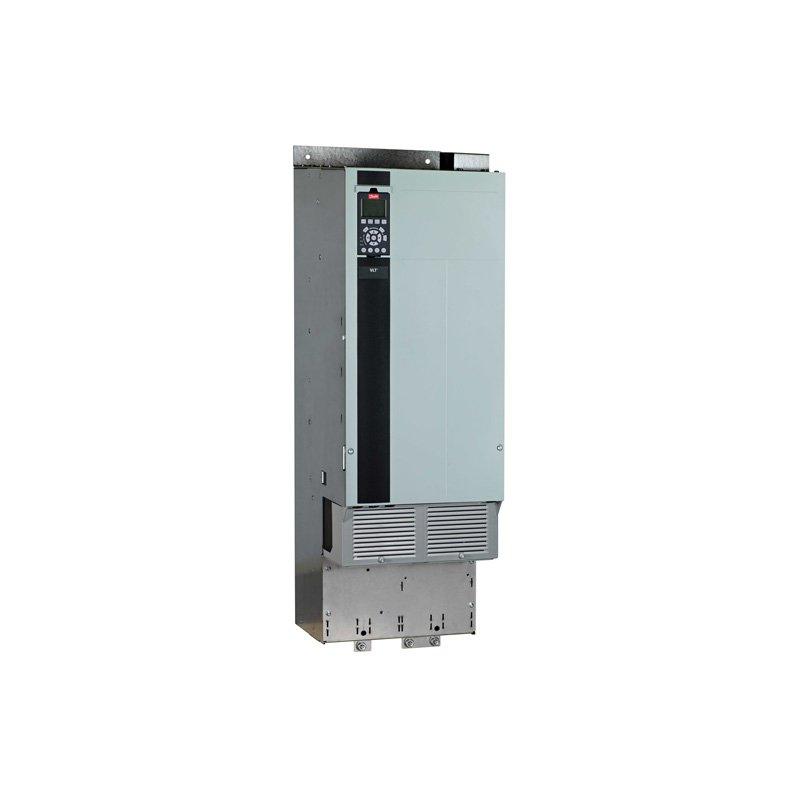

Frequency converter
FC-202N132T4E20H2TXCXXXSXXXXALBXCXXXXDX
VLT® AQUA Drive FC-202
(N132) 132 KW / 200 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI Filter
Safe Stop
No Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
PROFINET MCA 120, No B Option
No C1 option, No D option
Frame: D3H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 62.3 kg |
| Net weight | 62 kg |
| Volume | 0 l |
| EAN | 5715253356457 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N132 | (N132) 132 KW / 200 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | X | No Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AL | PROFINET MCA 120 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | D3H | D3H |
| Typecode Part 1 | FC-202N132T4E20H2TXC | |
| Typecode Part 2 | XXXSXXXXALBXCXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 110 | |
| Power 110% (NO) [KW] | 132 | |
| Height [mm] | 909,0 | |
| Height w/ Regen/Loadshare [mm] | 1004,0 | |
| Width w/ no C options [mm] | 250,0 | |
| Depth [mm] | 375,0 | |
| Depth with Option A/B [mm] | 375,0 | |
| kVA | 180 | |
| Power Loss NO [W] | 2954 | |
| Power Loss NO [W] | 2724 | |
| Power Loss HO [W] | 2289 | |
| Power Loss HO [W] | 2051 | |
| Continuous Current (NO) [A] | 260 | |
| Intermittent Current (NO) [A] | 286 | |
| Continuous Current (NO) [A] | 240 | |
| Intermittent Current (NO) [A] | 264 | |
| Continuous Current (HO) [A] | 212 | |
| Intermittent Current (HO) [A] | 318 | |
| Continuous Current (HO) [A] | 190 | |
| Intermittent Current (HO) [A] | 285 | |
| Calculated Gross Weight [kg] | 62.3 | |
| Calculated Net Weight [kg] | 62 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N132T4E20H2TXC | |
| Modelcode02 | XXXSXXXXALBXCXXXXDX |
