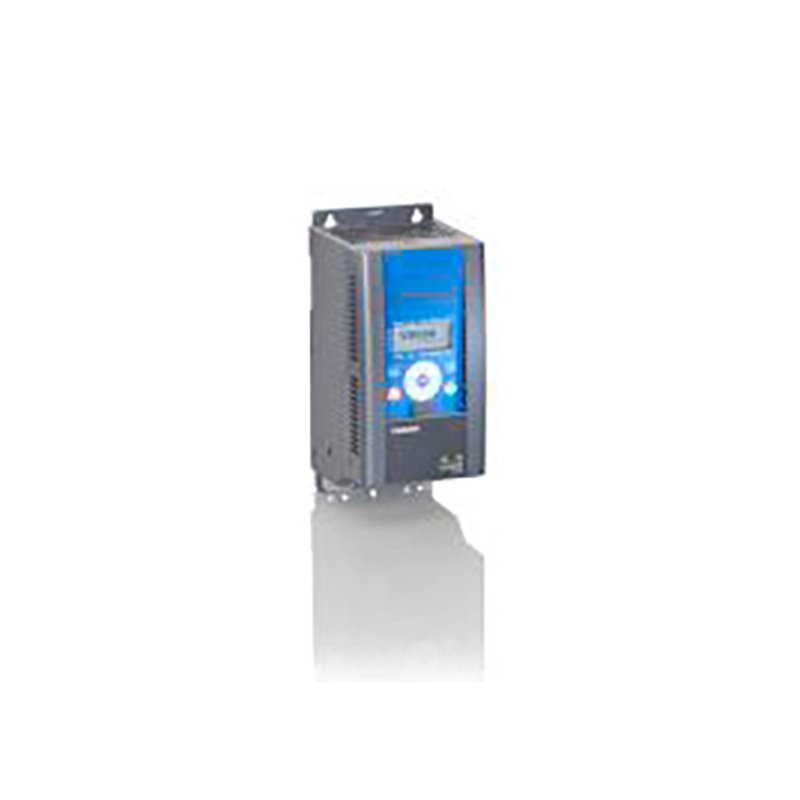

VACON0020-1L-0001-1-R02
Frequency Converter
VACON0020-1L-0001-1-R02MI02-0001-1+IP20+EMC4
(0020) Vacon 020
1 Phase AC Input, 105-120 Vac
1 Amp, IP20/UL Open Type, EMC 4 Class
(+DBNO) No Brake, 60 Hz, MI02
Other options according to Model code
VACON® 20 comes with compactness and programming functionality that
.
| Gross weight | 1.7 kg |
| Net weight | 0.7 kg |
| Volume | 0 l |
| EAN | 5710108237899 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | VACON | (VACON) Vacon |
| Product Range | 0020 | (0020) Vacon 020 |
| Segment | NONE | (NONE) Vacon 10/20 |
| Customized | +BM25 | (+BM25) Vacon0020 product |
| Regional | -R02 | North America |
| Input | -1L | 1 Phase AC Input |
| Voltage | -1 | 105-120 Vac |
| Current | -0001 | 1 Amp |
| Current Description | 1,7 AMP | |
| API Selection | +SM20 | API for Vacon0020 |
| E Slot Option Board | +SE00 | No Option |
| Mounting | -DM | Drive Module |
| Enclosure | +IP20 | IP20/UL Open Type |
| EMC Level | +EMC4 | EMC 4 Class |
| Enclosure Accessory A | +QPES | (+QPES) PE Plate Kit |
| Enclosure Accessory B | +Q000 | (+Q000) No Additional Option |
| Documentation Language | +DLUS | (+DLUS) US English |
| Documentation level | +DQCK | (+DQCK) Quick Guide |
| Label Language | +LLUK | (+LLUK) English |
| SW package | +F0107 | (+F0107)VACON 20 SW package |
| Application | +A0000 | (+A0000)No Special Application |
| Brake | +DBNO | (+DBNO) No Brake |
| Display Units | +LSUS | (+LSUS)US Units of Measure |
| Frequency Setting | +LS60 | 60 Hz |
| Parameter Set | +L0000 | (+L0000) No Parameter Set |
| Shipping Package | +GSCB | Cardboard Box as Shipping pack |
| UL Approval | +GAUL | (+GAUL) UL Approval |
| CE Aproval | +GNCE | (+GNCE) No CE approval |
| C-tick Approval | +GNCT | (+GNCT) No C-Tick Approval |
| KC Approval | +GNKC | (+GNKC) No KC Approval |
| Standard Warranty | +WT01 | (+WT01) Warranty 12/18 Months |
| Frame Size | MI02 | MI02 |
| Typecode Part 1 | 70-AC1L00011W02A140BM25 | |
| Typecode Part 2 | -00056620 | |
| Modelcode01 | VACON0020-1L-0001-1 | |
| Modelcode02 | -R02 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Salestext | MI02-0001-1+IP20+EMC4 | |
| Calculated Net Weight [kg] | 0.88 | |
| Calculated Gross Weight [kg] | 1.16 | |
| Motor Power High Overload [kW] | 0.25 | |
| Dimensions WxHxD [mm] | 90 X 195 X 102 | |
| Continuous Current (NO) [A] | 1.7 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Help Counter | 1 | |
| PREFIX AS PART OF STOCKCODE | 70- | PREFIX FOR VXS020 |
| VXS020 FRAME TYPE | A | Frame type A |
| Material Gross Weight | 1.7 | |
| Material Net Weight | 0.7 | |
| check if complete | OK | |
| ECCN US | 3A999.a | |
| ECCN EU | X.A.I.003 |
