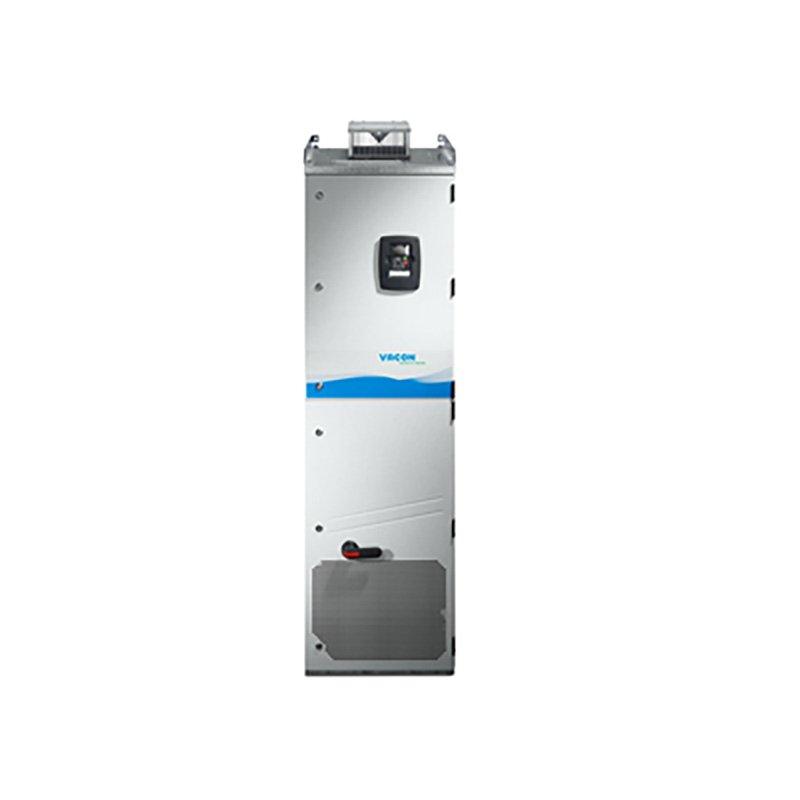

NXP03256-A2T0SSA-A9A30000C3+FL23+DPAP+DLDE
Vacon NXP Frequency Converter
525 - 690 Vac (640-1100 Vdc), 325 Amp,IP21/NEMA1
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: A9,OPTA1 with 2,5mm2 conn.
B Slot: A3,1RO(NO/NC),1RO(NC), therm
C Slot: No board
D Slot: No board
E Slot: C3,PROFIBUS DP
Manual: German
Frame 10
Other options according to Model code
The VACON® NX family of air-cooled and liquid-cooled drives is
.
| Gross weight | 341 kg |
| Net weight | 340 kg |
| Volume | 0 l |
| EAN | 5714853474363 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | NXP | NXP Frequency Converter |
| Customized Drive | +BM26 | Vacon Dark Grey NXP |
| Mechanical Modification | S | Standard air cooled drive |
| Mains voltage | 6- | 525 - 690 Vac (640-1100 Vdc) |
| Current | 0325 | 325 Amp |
| Control Keypad | A | Alpha-numeric display |
| Enclosure | 2 | IP21/NEMA1 |
| EMC emission levels | T | IEC61800-3 for IT networks |
| Brake Chopper | 0 | No Brake |
| Electrical Modification | S | 6-pulse with choke |
| Card Modifications | A- | Fiber + integr. control |
| Shipping Package | +GSCB | Cardboard box as Shipping pack |
| Warranty | +WT01 | Warranty 12/18 months |
| Gland Plate Option | +QGNO | No conduit plate |
| Option Slot A | A9 | A9,OPTA1 with 2,5mm2 conn. |
| Option Slot B | A3 | A3,1RO(NO/NC),1RO(NC), therm |
| Option Slot C | 00 | No board |
| Option Slot D | 00 | No board |
| Option Slot E | C3 | C3,PROFIBUS DP |
| Firmware language package | +FL23 | UK,NL,DE,FR,ITWestEurII |
| Documentation Level | +DPAP | Paper manuals |
| Documentation Lang. Preference | +DLDE | German |
| System Firmware | +FNP02 | System software NXP |
| Software license | NONE | no software license |
| Application | +A000 | No Special Application |
| Parameter Set | NONE | none |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ |
| Labeling options | +LPC1 | no additional labels |
| Special BoM structure | +SPC0 | Standard BoM Configuration |
| CE Approval | +GACE | CE Approval |
| UL Approval | +GAUL | UL approval |
| RCM Approval | +GACT | RCM Approval N16307 |
| Marine approval | NONE | no marine approval |
| KC Approval | +GAKC | Korean Approval |
| Ukrainian Approval | +GAUA | Ukrainian Approval |
| EAC Approval | +GAEA | EAC Approval |
| Region | -R00 | International (-R00) |
| Frame Size | FR10 | Frame 10 |
| Sub family identification | NONE | Normal customer ordered |
| Customer specific power variat | NONE | Normal power rating |
| Typecode Part 1 | 7DP-032562 | |
| Typecode Part 2 | -000061983 | |
| Salestext | FR1003256-2T | |
| Modelcode01 | NXP03256-A2T0SSA- | |
| Modelcode02 | A9A30000C3 | |
| Modelcode03 | +FL23 | |
| Modelcode05 | +DPAP+DLDE | |
| Calculated Net Weight [kg] | 340 | |
| Calculated Gross Weight [kg] | 341 | |
| Motor Power Low Overload [kW] | 315 | |
| Motor Power High Overload [kW] | 250 | |
| Dimensions WxHxD [mm] | 595X2018X602 | |
| Continuous Current (NO) [A] | 325 | |
| Continuous Current (HO) [A] | 261 | |
| Prefix VXSNXLM | 7 | |
| Platform VXSNXLM | D | |
| Stock Code | 7DP-032562 | |
| check if complete | OK | |
| Material Gross Weight | 341 | |
| Material Net Weight | 340 | |
| Help Counter | 1 | |
| Plant from Orderline | D801 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
