NXP08206-A0N1BSF-A1A2A5D1C5+APFIFF10

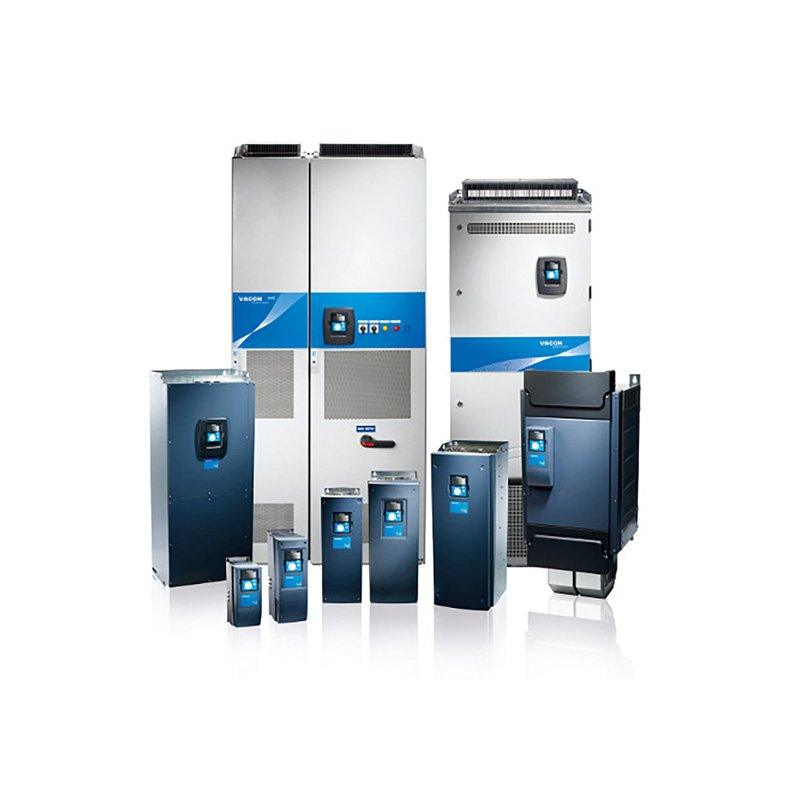

Vacon NXP Frequency Converter
525 – 690 Vac (640-1100 Vdc), 820 Amp,IP00
Alpha-numeric display
no EMC protection
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: A2,2RO(NO/NC)
C Slot: A5,3DI(Enc.10-24V),15/24Vout
D Slot: D1,System Bus adapt, 2xfibre
E Slot: C5,PROFIBUS DP with Sub-D9
Manual: English
2xFrame 10
Other options according to Model code
The VACON® NX family of air-cooled and liquid-cooled drives is
.
