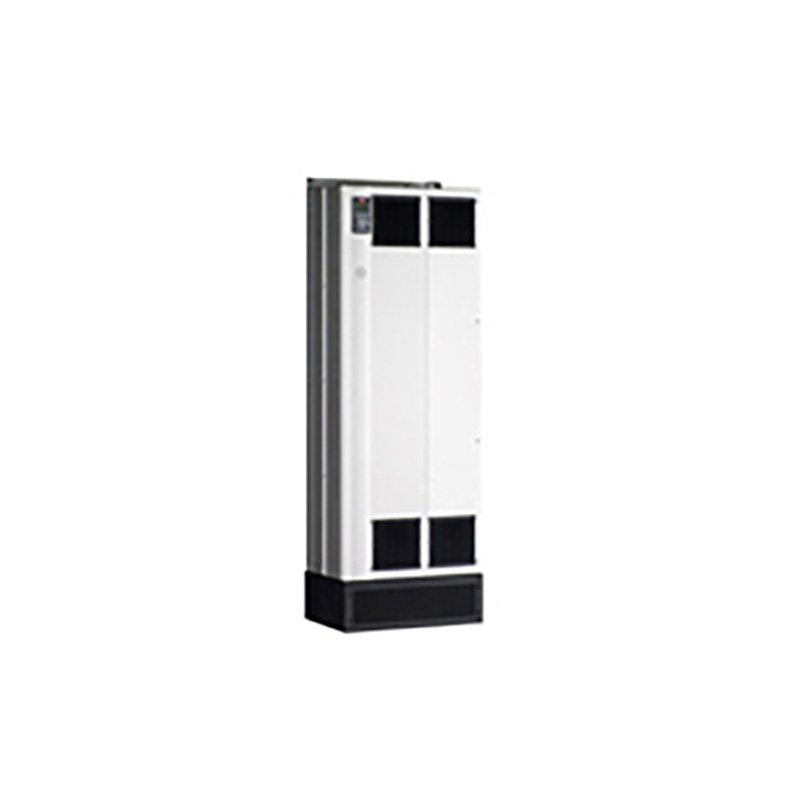

Advanced Active Filter AAF
380-480 VAC, 190Amp correction, IP21 / With mains shield,
RFI class A1, Fuse
Model code:AAF006A190T4E2MH4XGC7XXSXXXXAXBXCFXXXDX
Danfoss Advanced Active Filters eliminate harmonic
distortion from non-linear loads and improve system power.
| Gross weight |
370 kg |
| Net weight |
270 kg |
| Volume |
0 l |
| EAN |
5710107425242 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® ADVANCED ACTIVE FILTER AAF SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
AAF |
Advanced Active Filter AAF |
| VLT Series |
006 |
006 |
| Current Rating |
A190 |
190Amp correction |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380-480 VAC |
| Enclosure |
E2M |
IP21 / With mains shield |
| RFI Filter |
H4 |
RFI class A1 |
| Brake - Safe Stop |
X |
No brake chopper |
| Display |
G |
Graphical Control Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
7 |
Fuse |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Options |
| B Option |
BX |
No B Option |
| C0 Options MCO |
CF |
Active Filter Guard |
| C1 Options |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
D14 |
(D14) D14-Frame |
| Typecode Part 1 |
AAF006A190T4E2MH4XGC7XXSXXXXAX |
| Typecode Part 2 |
BXCFXXXDX |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Calculated Gross Weight [kg] |
273 |
| Calculated Net Weight [kg] |
238 |
| Material Gross Weight |
370 |
| Material Net Weight |
270 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
AAF006A190T4E2MH4XGC7XXSXXXXAX |
| Modelcode02 |
BXCFXXXDX |
