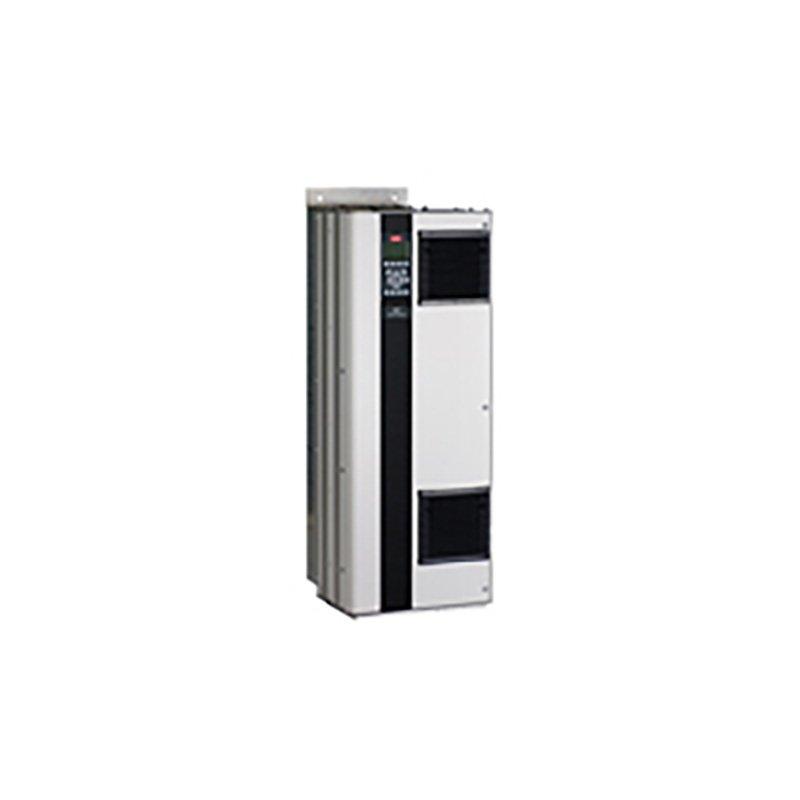

FC-202N55KT2E54H2TGCXXXSXXXXAXBXCXXXXDX
Frequency converter
FC-202N55KT2E54H2TGCXXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(N55K) 55 KW / 75 HP, Three phase
200 - 240 VAC, (E54) IP54 / Type 12
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: D1H
Other options according to Model code
Model code:
FC-202N55KT2E54H2TGCXXXSXXXXAXBXCXXXXDX
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight |
62.3 kg |
| Net weight |
62 kg |
| Volume |
0 l |
| EAN |
5715253194196 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
N55K |
(N55K) 55 KW / 75 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
2 |
200 - 240 VAC |
| Enclosure |
E54 |
(E54) IP54 / Type 12 |
| RFI Filter |
H2 |
RFI Filter |
| Brake - Safe Stop |
T |
Safe Stop |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
D1H |
D1H |
| Typecode Part 1 |
FC-202N55KT2E54H2TGC |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
| Product Catalog |
GLBL |
Global (Standard) |
| Height [mm] |
901,0 |
| Width w/ no C options [mm] |
325,0 |
| Depth [mm] |
378,0 |
| Depth with Option A/B [mm] |
378,0 |
| Calculated Gross Weight [kg] |
62.3 |
| Calculated Net Weight [kg] |
62 |
| Material Gross Weight |
62.3 |
| Material Net Weight |
62 |
| Plant from Orderline |
B901 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-202N55KT2E54H2TGC |
| Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
