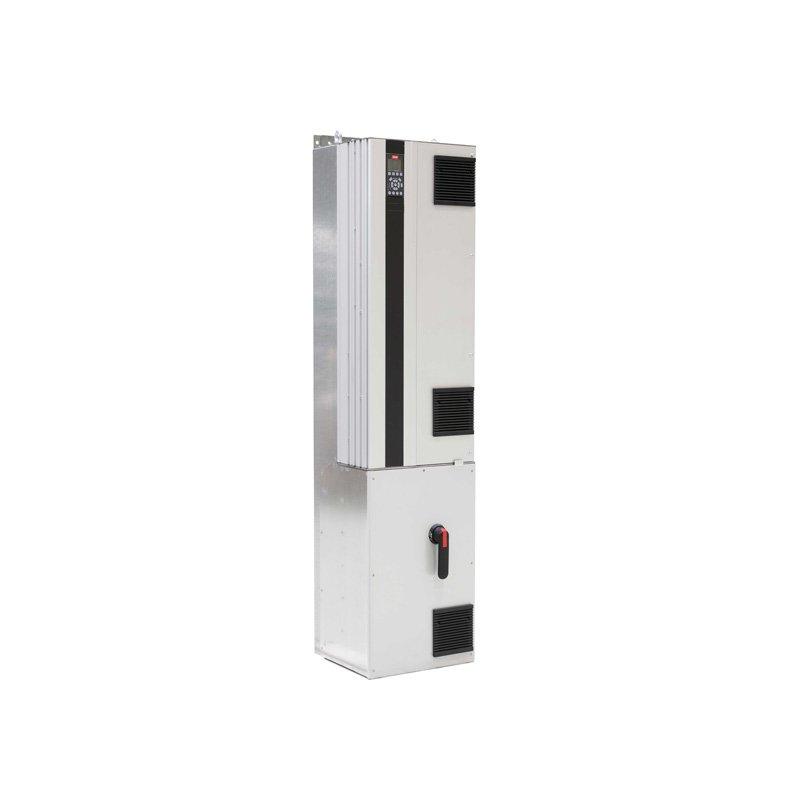

FC-202N110T4E2MH2TLC3XQSXXXXAXBKCXXXXDX
Frequency converter
FC-202N110T4E2MH2TLC3XQSXXXXAXBKCXXXXDX
VLT® AQUA Drive FC-202
(N110) 110 KW / 150 HP, Three phase
380 - 480 VAC, IP21/Type 1+mains shield
RFI Filter
Safe Stop
Graphical LCP + USB
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
No A Option, MCB-101 General purp. I/O
No C1 option, No D option
Frame: D5H
Other options according to Model code
Model code:
FC-202N110T4E2MH2TLC3XQSXXXXAXBKCXXXXDX
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight |
166.3 kg |
| Net weight |
166 kg |
| Volume |
0 l |
| EAN |
5715253198200 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
N110 |
(N110) 110 KW / 150 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
E2M |
IP21/Type 1+mains shield |
| RFI Filter |
H2 |
RFI Filter |
| Brake - Safe Stop |
T |
Safe Stop |
| LCP |
L |
Graphical LCP + USB |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
3 |
Mains Disconnect + Fuse |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
Q |
Heat-sink access |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BK |
MCB-101 General purp. I/O |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
D5H |
D5H |
| Typecode Part 1 |
FC-202N110T4E2MH2TLC |
| Typecode Part 2 |
3XQSXXXXAXBKCXXXXDX |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Power 150% (HO) [KW] |
90 |
| Power 110% (NO) [KW] |
110 |
| Height [mm] |
1324,0 |
| Width w/ no C options [mm] |
325,0 |
| Depth [mm] |
381,0 |
| Depth with Option A/B [mm] |
381,0 |
| kVA |
147 |
| Power Loss NO [W] |
2559 |
| Power Loss NO [W] |
2261 |
| Power Loss HO [W] |
2031 |
| Power Loss HO [W] |
1828 |
| Continuous Current (NO) [A] |
212 |
| Intermittent Current (NO) [A] |
233 |
| Continuous Current (NO) [A] |
190 |
| Intermittent Current (NO) [A] |
209 |
| Continuous Current (HO) [A] |
177 |
| Intermittent Current (HO) [A] |
266 |
| Continuous Current (HO) [A] |
160 |
| Intermittent Current (HO) [A] |
240 |
| Calculated Gross Weight [kg] |
166.3 |
| Calculated Net Weight [kg] |
166 |
| Material Gross Weight |
166.3 |
| Material Net Weight |
166 |
| Plant from Orderline |
F605 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-202N110T4E2MH2TLC |
| Modelcode02 |
3XQSXXXXAXBKCXXXXDX |
