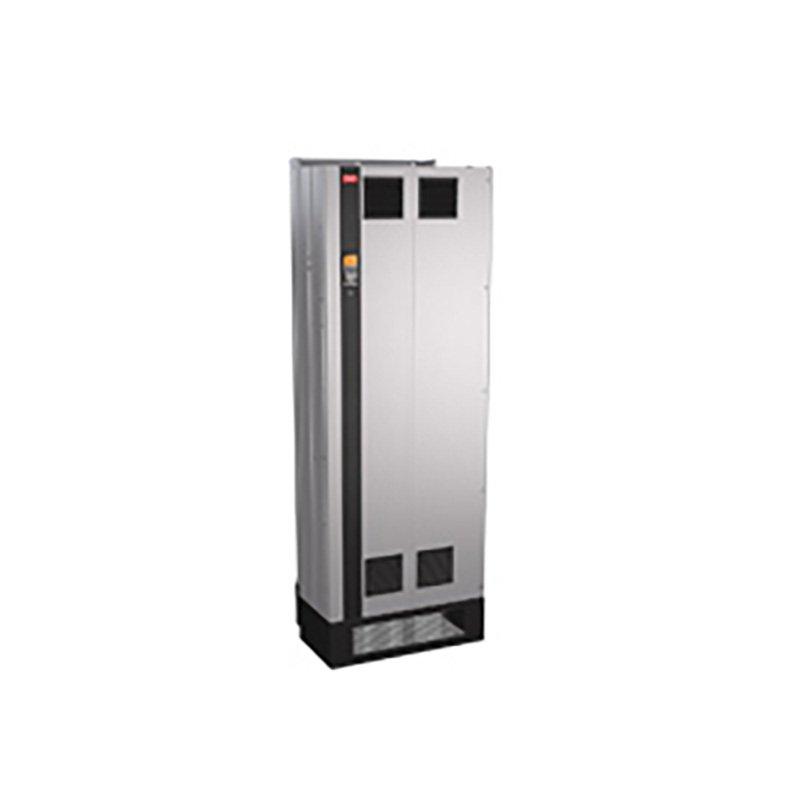

Frequency converter
FC-202N800T7E54H2XGC7XXSXXXXAXBKCXXXXD0
VLT® AQUA Drive FC-202
(N800) 800 KW / 1200 HP, Three phase
525 - 690 VAC *, (E54) IP54 / Type 12
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, MCB-101 General purp. I/O
No C1 option, MCB-107 24V DC backup
Frame: E2H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 318.3 kg |
| Net weight | 318 kg |
| Volume | 0 l |
| EAN | 5715253278964 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N800 | (N800) 800 KW / 1200 HP |
| Phase | T | Three phase |
| Mains Voltage | 7 | 525 - 690 VAC * |
| Possible rating issue | WARN01 | Possible Rating Issue: |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BK | MCB-101 General purp. I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | E2H | E2H |
| Typecode Part 1 | FC-202N800T7E54H2XGC | |
| Typecode Part 2 | 7XXSXXXXAXBKCXXXXD0 | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 710 | |
| Power 110% (NO) [KW] | 800 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 700,0 | |
| Depth [mm] | 510,0 | |
| Depth with Option A/B [mm] | 510,0 | |
| kVA | 1016 | |
| Power Loss NO [W] | 12723 | |
| Power Loss NO [W] | 12321 | |
| Power Loss HO [W] | 10319 | |
| Power Loss HO [W] | 10060 | |
| Continuous Current (NO) [A] | 889 | |
| Intermittent Current (NO) [A] | 978 | |
| Continuous Current (NO) [A] | 850 | |
| Intermittent Current (NO) [A] | 935 | |
| Continuous Current (HO) [A] | 763 | |
| Intermittent Current (HO) [A] | 1144 | |
| Continuous Current (HO) [A] | 730 | |
| Intermittent Current (HO) [A] | 1095 | |
| Calculated Gross Weight [kg] | 318.3 | |
| Calculated Net Weight [kg] | 318 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N800T7E54H2XGC | |
| Modelcode02 | 7XXSXXXXAXBKCXXXXD0 |
