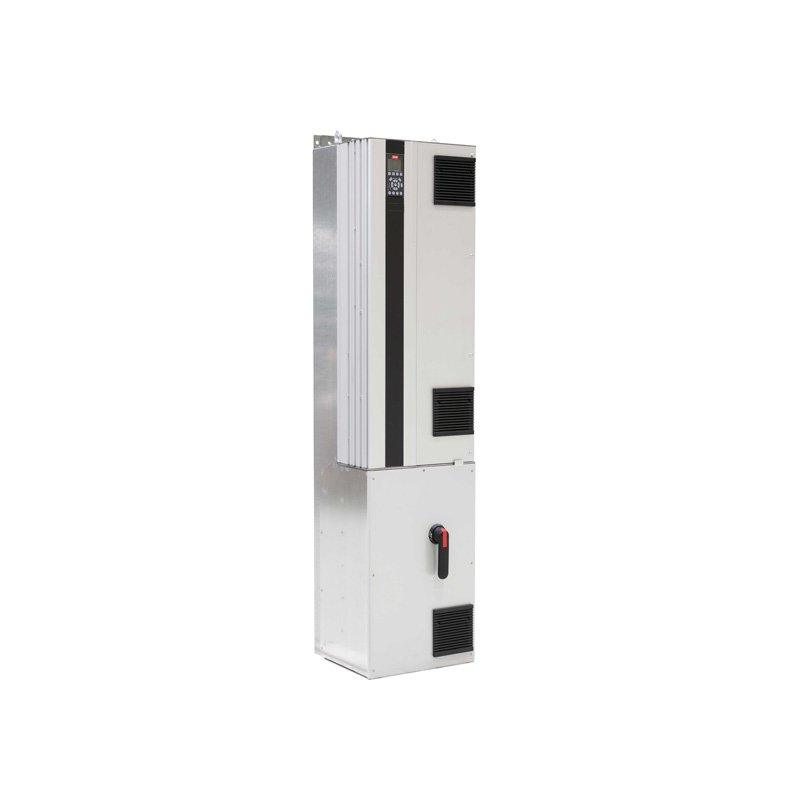

Frequency converter
FC-202N160T4E2MH2TGCVXXSXXXXALB4CXXXXD0
VLT® AQUA Drive FC-202
(N160) 160 KW / 250 HP, Three phase
380 - 480 VAC, IP21/Type 1+mains shield
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Multiwire cab+BBs+CMC+Fuse
Latest release std. SW.
PROFINET MCA 120, MCB-114 VLT Sensor Input
No C1 option, MCB-107 24V DC backup
Frame: D5H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 166.3 kg |
| Net weight | 166 kg |
| Volume | 0 l |
| EAN | 5715253288901 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N160 | (N160) 160 KW / 250 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E2M | IP21/Type 1+mains shield |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | V | Multiwire cab+BBs+CMC+Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AL | PROFINET MCA 120 |
| B Option | B4 | MCB-114 VLT Sensor Input |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | D5H | D5H |
| Typecode Part 1 | FC-202N160T4E2MH2TGC | |
| Typecode Part 2 | VXXSXXXXALB4CXXXXD0 | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 132 | |
| Power 110% (NO) [KW] | 160 | |
| Height [mm] | 1324,0 | |
| Width w/ no C options [mm] | 325,0 | |
| Depth [mm] | 381,0 | |
| Depth with Option A/B [mm] | 381,0 | |
| kVA | 218 | |
| Continuous Current (NO) [A] | 315 | |
| Intermittent Current (NO) [A] | 346 | |
| Continuous Current (NO) [A] | 302 | |
| Intermittent Current (NO) [A] | 332 | |
| Continuous Current (HO) [A] | 260 | |
| Intermittent Current (HO) [A] | 390 | |
| Continuous Current (HO) [A] | 240 | |
| Intermittent Current (HO) [A] | 360 | |
| Calculated Gross Weight [kg] | 166.3 | |
| Calculated Net Weight [kg] | 166 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N160T4E2MH2TGC | |
| Modelcode02 | VXXSXXXXALB4CXXXXD0 |
