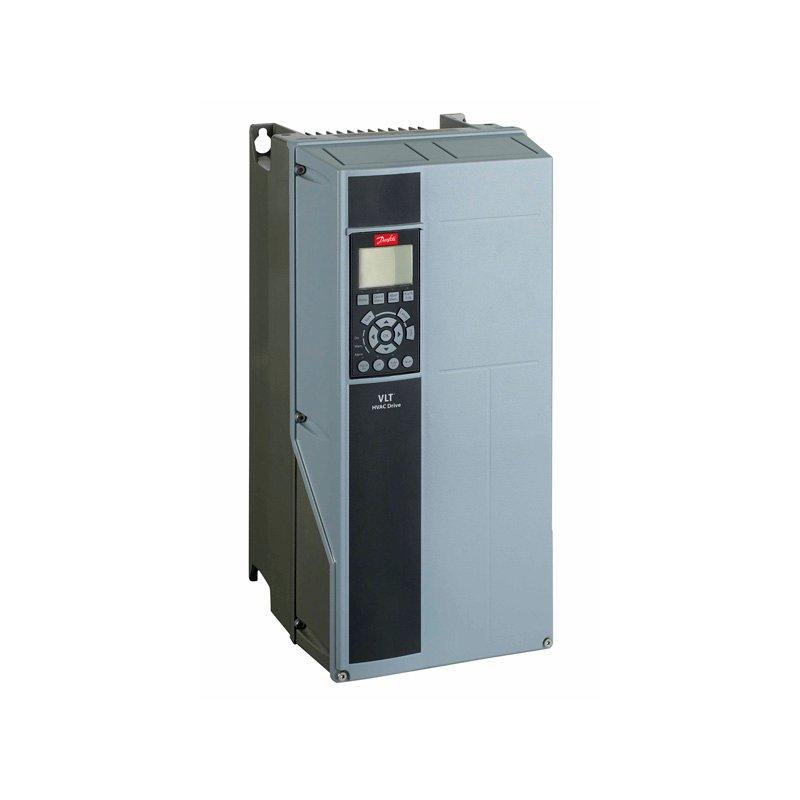

Frequency converter
FC-202P2K2S2E66H2XGXXSXSXXXXA0BXCXXXXDX
VLT® AQUA Drive FC-202
(P2K2) 2.2 KW / 3.0 HP, Single phase
200 - 240 VAC, (E66) IP66 / NEMA 4X
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 23.3 kg |
| Net weight | 23 kg |
| Volume | 0 l |
| EAN | 5715253324487 |
| Product View (Switch) | NAMC | North America (Regional) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P2K2 | (P2K2) 2.2 KW / 3.0 HP |
| Phase | S | Single phase |
| Mains Voltage | 2 | 200 - 240 VAC |
| Enclosure | E66 | (E66) IP66 / NEMA 4X |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | S | Smooth imperial cable entr |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B1 | B1 |
| Typecode Part 1 | FC-202P2K2S2E66H2XGX | |
| Typecode Part 2 | XSXSXXXXA0BXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 110% (NO) [KW] | 2.2 | |
| Height [mm] | 480,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 3.82 | |
| Power Loss NO [W] | 44 | |
| Continuous Current (NO) [A] | 10.6 | |
| Intermittent Current (NO) [A] | 11.7 | |
| Calculated Gross Weight [kg] | 23.3 | |
| Calculated Net Weight [kg] | 23 | |
| Material Gross Weight | 23.3 | |
| Material Net Weight | 23 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P2K2S2E66H2XGX | |
| Modelcode02 | XSXSXXXXA0BXCXXXXDX |
