FC-302P11KT5P21H1XNC1XXSXXXXAXBXCXXXXDX
Frequency converter
FC-302P11KT5P21H1XNC1XXSXXXXAXBXCXXXXDX

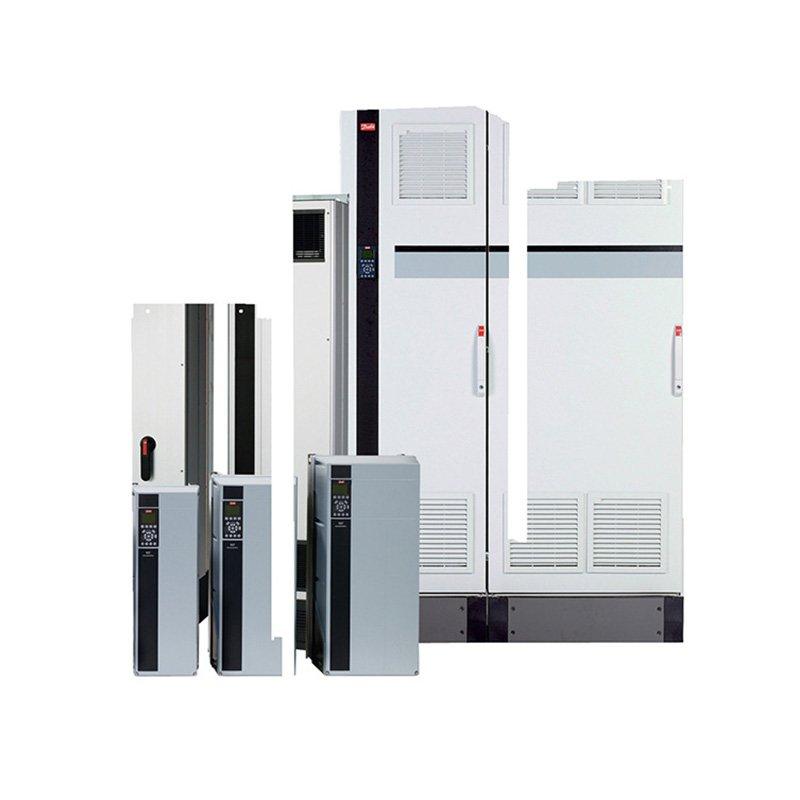

VLT® AutomationDrive FC-302
(P11K) 11 KW / 15 HP, Three phase
380 - 500 VAC, IP21 / Type 1 Backplate
(H1) RFI Class A1/B (C1)
No brake chopper
Numerical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Model code:
FC-302P11KT5P21H1XNC1XXSXXXXAXBXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight |
24.3 kg |
| Net weight |
24 kg |
| Volume |
0 l |
| EAN |
5710107175185 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® AutomationDrive FC- |
| Series |
302 |
302 |
| Power Rating |
P11K |
(P11K) 11 KW / 15 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
5 |
380 - 500 VAC |
| Enclosure |
P21 |
IP21 / Type 1 Backplate |
| RFI Filter |
H1 |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
X |
No brake chopper |
| LCP |
N |
Numerical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
1 |
Mains Disconnect |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
B1 |
B1 |
| Typecode Part 1 |
FC-302P11KT5P21H1XNC |
| Typecode Part 2 |
1XXSXXXXAXBXCXXXXDX |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Power 160% (HO) [KW] |
11 |
| Power 110% (NO) [KW] |
15 |
| Height [mm] |
480,0 |
| Width w/ no C options [mm] |
242,0 |
| Depth [mm] |
260,0 |
| Depth with Option A/B [mm] |
260,0 |
| kVA |
16.6 |
| Power Loss NO [W] |
392 |
| Power Loss NO [W] |
392 |
| Power Loss HO [W] |
291 |
| Power Loss HO [W] |
291 |
| Continuous Current (NO) [A] |
32 |
| Intermittent Current (NO) [A] |
35.2 |
| Continuous Current (NO) [A] |
27 |
| Intermittent Current (NO) [A] |
29.7 |
| Continuous Current (HO) [A] |
24 |
| Intermittent Current (HO) [A] |
38.4 |
| Continuous Current (HO) [A] |
21 |
| Intermittent Current (HO) [A] |
33.6 |
| Calculated Gross Weight [kg] |
22.7 |
| Calculated Net Weight [kg] |
22.4 |
| Material Gross Weight |
24.3 |
| Material Net Weight |
24 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-302P11KT5P21H1XNC |
| Modelcode02 |
1XXSXXXXAXBXCXXXXDX |
