FCD302PK75T4W66H1X1XMFCFXXXXALBXXXXXXDX

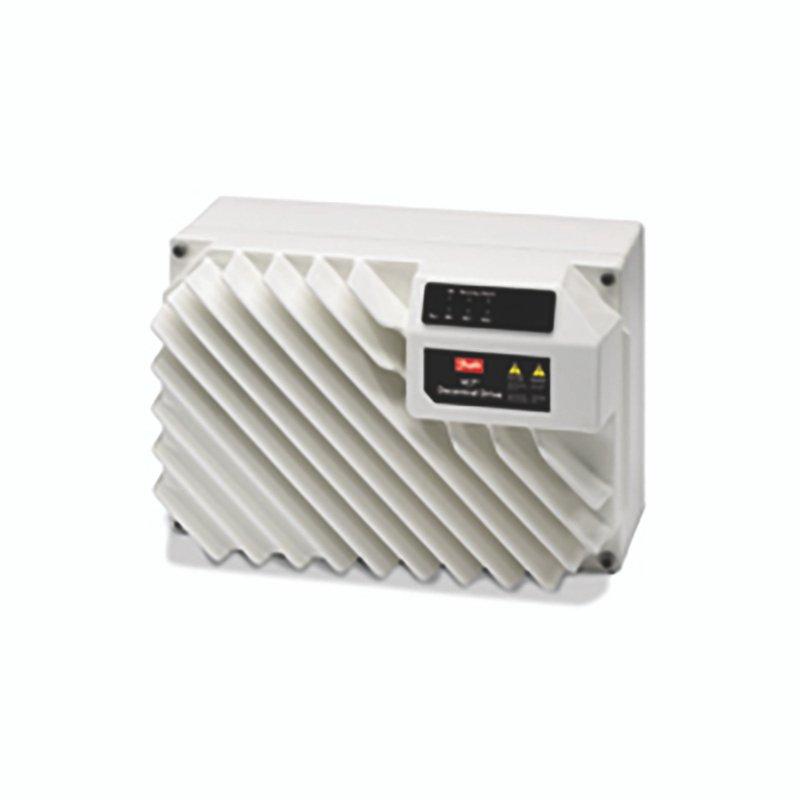

VLT® Decentral Drive FCD 302
0.75 kW / 1.0 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, No brake, Compl. small stand alone, No brackets,
Metric threads, Service switch motor side, With display connector
The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the.
| Gross weight | 8.83 kg |
| Net weight | 8.1 kg |
| Volume | 31.95 l |
| EAN | 5710107982059 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FCD | VLT® Decentral Drive FCD |
| VLT Series | 302 | 302 |
| Power Rating | PK75 | 0.75 kW / 1.0 HP |
| Mains Voltage | T4 | 380-480VAC (Three phased) |
| Enclosure | W66 | Standard White IP66/NEMA4X |
| RFI Filter | H1 | RFI Class A1/C2 |
| Brake | X | No brake |
| Hardware Configuration | 1 | Compl. small stand alone |
| Brackets | X | No brackets |
| Threads | M | Metric threads |
| Switch Option | F | Service switch motor side |
| Display | C | With display connector |
| Sensor Plugs | F | Direct mount 6xM12 |
| Motor Plug | X | No motor plug |
| Mains Plug | X | No mains plug |
| Fieldbus Plug | X | No fieldbus plug |
| Reserved | X | Reserved |
| A Option | AL | Profinet |
| B Option | BX | No B option |
| Reserved for SW | XXXXX | Reserved for SW |
| D Option | DX | No option |
| FCD302 Frame Size | MF1 | (MF1) MF1 |
| Typecode Part 1 | FCD302PK75T4W66H1X1XMFCFXXXX | |
| Typecode Part 2 | ALBXXXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 10.1 | |
| Calculated Net Weight [kg] | 9.8 | |
| Material Gross Weight | 8.83 | |
| Material Net Weight | 8.1 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FCD302PK75T4W66H1X1XMFCFXXXX | |
| Modelcode02 | ALBXXXXXXDX |
