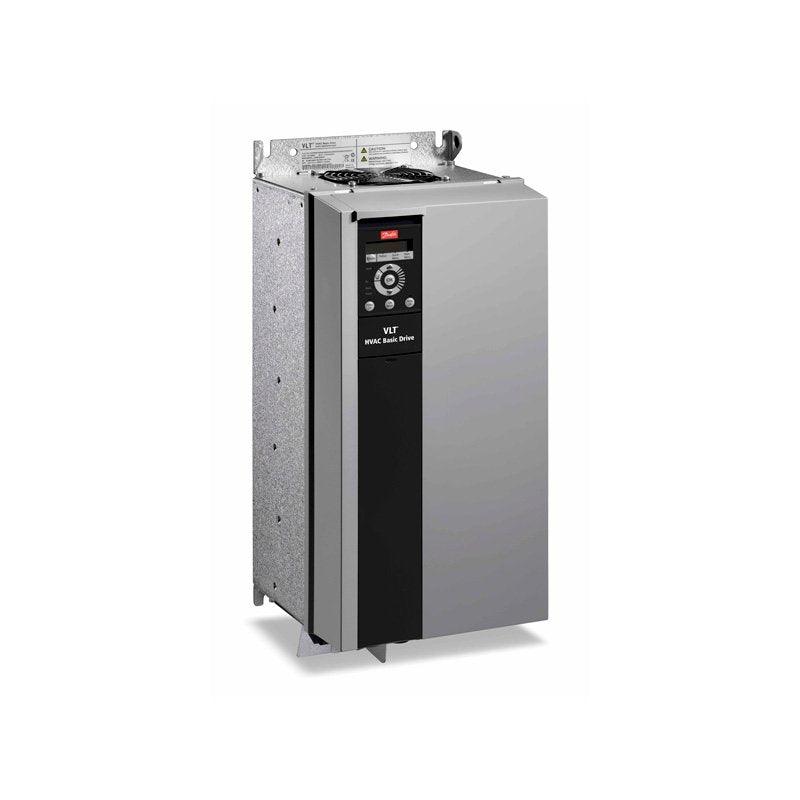

FC-101P18KT2P20H3XXXXXXSXXXXAXBXCXXXXDX
Frequency Converter
FC-101P18KT2P20H3XXXXXXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC- 101
(P18K) 18.5 KW / 25 HP, Three phase
200 - 240 VAC, IP20 / Chassis Backplate
(H3) RFI Class A1/B (C1)
No brake chopper
No Loc. Cont. Panel
Not coated PCB, No Mains Option
No A Option, No B Option
No C1 option, No D option
Frame: H6
Other options according to Model code
Model code:
FC-101P18KT2P20H3XXXXXXSXXXXAXBXCXXXXDX
These drives offer a wide range of powerful standard and optional features with low overall cost of ownership, ideal f.
| Gross weight |
23.5 kg |
| Net weight |
23.2 kg |
| Volume |
188.19 l |
| EAN |
5710107088577 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® HVAC DRIVE FC 101 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® HVAC Drive FC- |
| Series |
101 |
101 |
| Power Rating |
P18K |
(P18K) 18.5 KW / 25 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
2 |
200 - 240 VAC |
| Enclosure |
P20 |
IP20 / Chassis Backplate |
| RFI Filter |
H3 |
(H3) RFI Class A1/B (C1) |
| Brake - Safe Stop |
X |
No brake chopper |
| LCP |
X |
No Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
H6 |
H6 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Typecode Part 1 |
FC-101P18KT2P20H3XXX |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
| Calculated Net Weight [kg] |
24.8 |
| Calculated Gross Weight [kg] |
25.1 |
| Material Gross Weight |
23.5 |
| Material Net Weight |
23.2 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-101P18KT2P20H3XXX |
| Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
