FC-102P5K5T4E20H1XGXXXXSXXXXAXBXCXXXXD0
Frequency Converter
FC-102P5K5T4E20H1XGXXXXSXXXXAXBXCXXXXD0

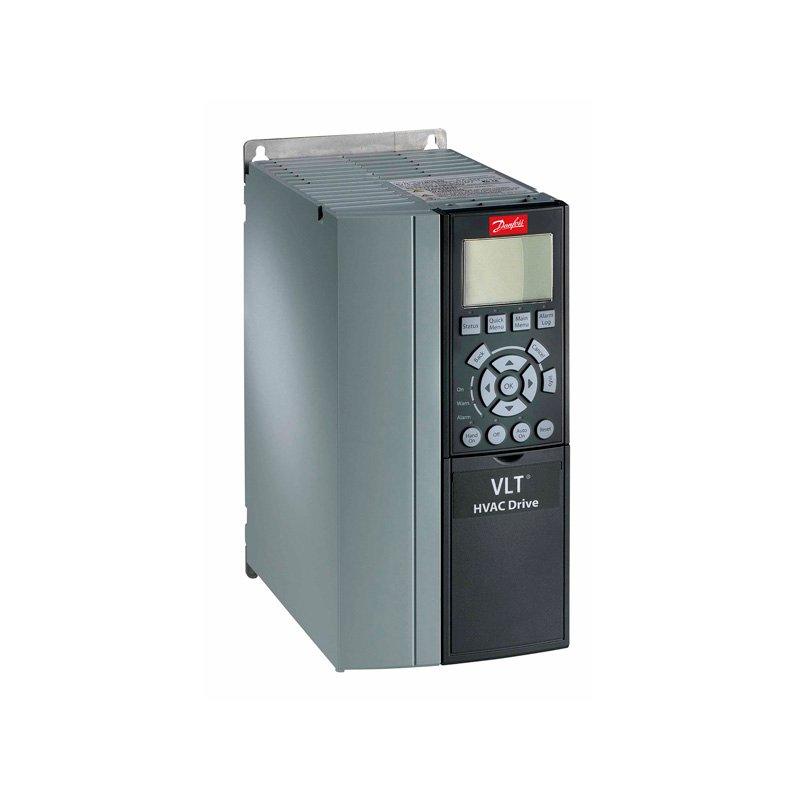

VLT® HVAC Drive FC-102
(P5K5) 5.5 KW / 7.5 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, MCB-107 24V DC backup
Frame: A3
Other options according to Model code
Model code:
FC-102P5K5T4E20H1XGXXXXSXXXXAXBXCXXXXD0
Danfoss Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful sta.
| Gross weight |
7.2 kg |
| Net weight |
6.61 kg |
| Volume |
29.754 l |
| EAN |
5702427403833 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® HVAC DRIVE FC 100 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® HVAC Drive FC- |
| Series |
102 |
102 |
| Power Rating |
P5K5 |
(P5K5) 5.5 KW / 7.5 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
E20 |
(E20) IP20 / Chassis |
| RFI Filter |
H1 |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
D0 |
MCB-107 24V DC backup |
| Frame Size |
A3 |
A3 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Typecode Part 1 |
FC-102P5K5T4E20H1XGX |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXD0 |
| Power 110% (NO) [KW] |
5.5 |
| Height [mm] |
268,0 |
| Width w/ no C options [mm] |
130,0 |
| Depth [mm] |
205,0 |
| Depth with Option A/B [mm] |
220,0 |
| kVA |
9.01 |
| Power Loss NO [W] |
187 |
| Power Loss NO [W] |
187 |
| Continuous Current (NO) [A] |
13 |
| Intermittent Current (NO) [A] |
14.3 |
| Continuous Current (NO) [A] |
11 |
| Intermittent Current (NO) [A] |
12.1 |
| Calculated Gross Weight [kg] |
7.1 |
| Calculated Net Weight [kg] |
6.8 |
| Material Gross Weight |
7.2 |
| Material Net Weight |
6.61 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-102P5K5T4E20H1XGX |
| Modelcode02 |
XXXSXXXXAXBXCXXXXD0 |
