FC-103P75KT4E21H2TGCXXXSXXXXAZBXCXXXXDX
Frequency converter
FC-103P75KT4E21H2TGCXXXSXXXXAZBXCXXXXDX

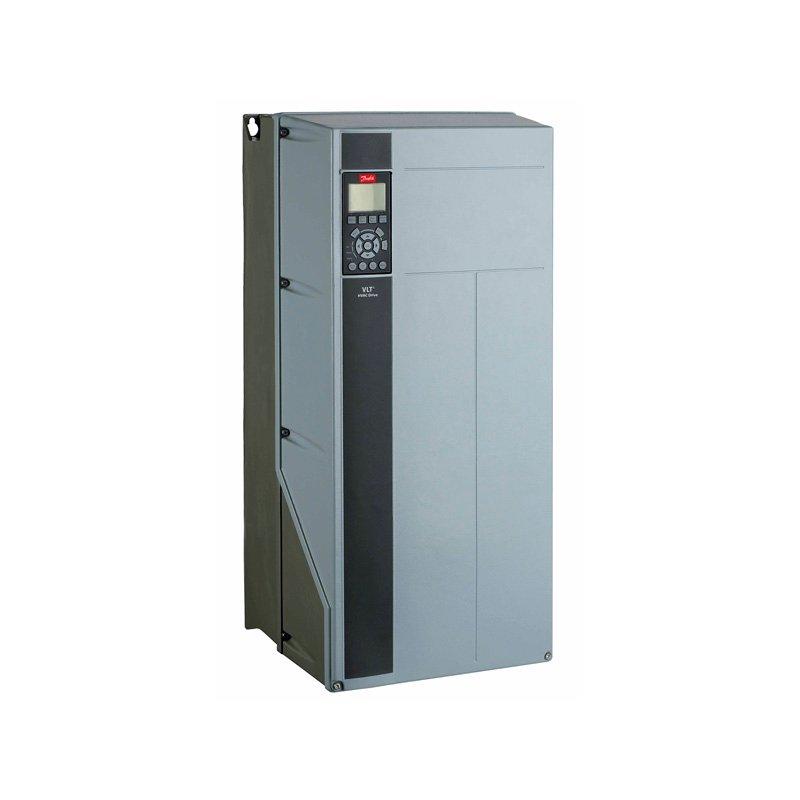

VLT® Refrigeration Drive FC-103
75 KW / 100 HP, Three phase
380 - 480 VAC, IP21 / Type 1
RFI filter Class A2
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
AK-LonWorks MCA 107, No B Option
No C1 option, No D option
Frame: C2
Other options according to Model code
Model code:
FC-103P75KT4E21H2TGCXXXSXXXXAZBXCXXXXDX
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight |
65.3 kg |
| Net weight |
65 kg |
| Volume |
0 l |
| EAN |
5710107542215 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® REFRIGERATION DRIVE FC 103 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® Refrigeration Drive |
| Series |
103 |
103 |
| Power Rating |
P75K |
75 KW / 100 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
E21 |
IP21 / Type 1 |
| RFI Filter |
H2 |
RFI filter Class A2 |
| Brake - Safe Stop |
T |
Safe Stop |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
C |
Coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AZ |
AK-LonWorks MCA 107 |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
C2 |
C2 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Typecode Part 1 |
FC-103P75KT4E21H2TGC |
| Typecode Part 2 |
XXXSXXXXAZBXCXXXXDX |
| Power 110% (NO) [KW] |
75 |
| Height [mm] |
770,0 |
| Width w/ no C options [mm] |
370,0 |
| Depth [mm] |
335,0 |
| Depth with Option A/B [mm] |
335,0 |
| kVA |
102 |
| Power Loss NO [W] |
1384 |
| Power Loss NO [W] |
1384 |
| Continuous Current (NO) [A] |
147 |
| Intermittent Current (NO) [A] |
162 |
| Continuous Current (NO) [A] |
130 |
| Intermittent Current (NO) [A] |
143 |
| Calculated Gross Weight [kg] |
55.8 |
| Calculated Net Weight [kg] |
55.5 |
| Material Gross Weight |
65.3 |
| Material Net Weight |
65 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-103P75KT4E21H2TGC |
| Modelcode02 |
XXXSXXXXAZBXCXXXXDX |
