7DS-052052-000120074
NXS05205-G2L0SSB-A8A20000E9+FL26+DPAP+DLCN

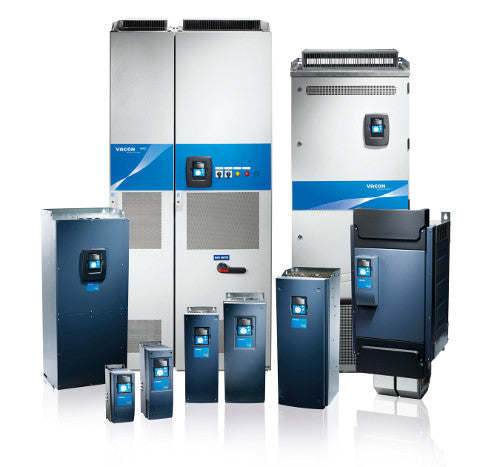

Vacon NXS Frequency Converter
380 –500 Vac (465-800 Vdc), 520 Amp,IP21/NEMA1
Graphical panel
IEC61800-3, 2. enviroment
No Brake
A Slot: A8,OPTA1 w.galv.isol 2AI&,1AO
B Slot: A2,2RO(NO/NC)
C Slot: No board
D Slot: No board
E Slot: E9,2-port ethernet
Manual: Chinese
Frame 10
Other options according to Model code
Product details
| Gross weight |
341 kg |
| Net weight |
340 kg |
| Volume |
0 l |
| EAN |
5715253493848 |
VACON NX_
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
NXS |
NXS Frequency Converter |
| Customized Drive |
+BM25 |
Vacon Blue NXS/NXL Customizati |
| Mechanical Modification |
S |
Standard air cooled drive |
| Mains voltage |
5- |
380 –500 Vac (465-800 Vdc) |
| Current |
0520 |
520 Amp |
| Control Keypad |
G |
Graphical panel |
| Enclosure |
2 |
IP21/NEMA1 |
| EMC emission levels |
L |
IEC61800-3, 2. enviroment |
| Brake Chopper |
0 |
No Brake |
| Electrical Modification |
S |
6-pulse with choke |
| Card Modifications |
B- |
Fiber+IntegrControl+varn.PCB |
| Shipping Package |
+GSCB |
Cardboard box as Shipping pack |
| Warranty |
+WT01 |
Warranty 12/18 months |
| Gland Plate Option |
+QGNO |
No conduit plate |
| Option Slot A |
A8 |
A8,OPTA1 w.galv.isol 2AI&,1AO |
| Option Slot B |
A2 |
A2,2RO(NO/NC) |
| Option Slot C |
00 |
No board |
| Option Slot D |
00 |
No board |
| Option Slot E |
E9 |
E9,2-port ethernet |
| Firmware language package |
+FL26 |
UK,RU,CN,Others |
| Documentation Level |
+DPAP |
Paper manuals |
| Documentation Lang. Preference |
+DLCN |
Chinese |
| System Firmware |
+FNS02 |
System software NXS2 |
| Software license |
NONE |
no software license |
| Application |
+A000 |
No Special Application |
| Parameter Set |
NONE |
none |
| Motor Parameter Default |
+LS50 |
Default Motor frequency 50HZ |
| Labeling options |
+LPC1 |
no additional labels |
| Special BoM structure |
+SPC0 |
Standard BoM Configuration |
| CE Approval |
+GACE |
CE Approval |
| UL Approval |
+GAUL |
UL approval |
| RCM Approval |
+GACT |
RCM Approval N16307 |
| Marine approval |
NONE |
no marine approval |
| KC Approval |
+GAKC |
Korean Approval |
| Ukrainian Approval |
+GAUA |
Ukrainian Approval |
| EAC Approval |
+GAEA |
EAC Approval |
| Region |
-R00 |
International (-R00) |
| Frame Size |
FR10 |
Frame 10 |
| Sub family identification |
NONE |
Normal customer ordered |
| Customer specific power variat |
NONE |
Normal power rating |
| Typecode Part 1 |
7DS-052052 |
| Typecode Part 2 |
-000120074 |
| Salestext |
FR1005205-2L |
| Modelcode01 |
NXS05205-G2L0SSB- |
| Modelcode02 |
A8A20000E9 |
| Modelcode03 |
+FL26 |
| Modelcode05 |
+DPAP+DLCN |
| Calculated Net Weight [kg] |
340 |
| Calculated Gross Weight [kg] |
341 |
| Motor Power Low Overload [kW] |
250 |
| Motor Power High Overload [kW] |
250 |
| Dimensions WxHxD [mm] |
595X2018X602 |
| Continuous Current (NO) [A] |
520 |
| Continuous Current (HO) [A] |
460 |
| Prefix VXSNXLM |
7 |
| Platform VXSNXLM |
D |
| Stock Code |
7DS-052052 |
| check if complete |
OK |
| Help Counter |
1 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
