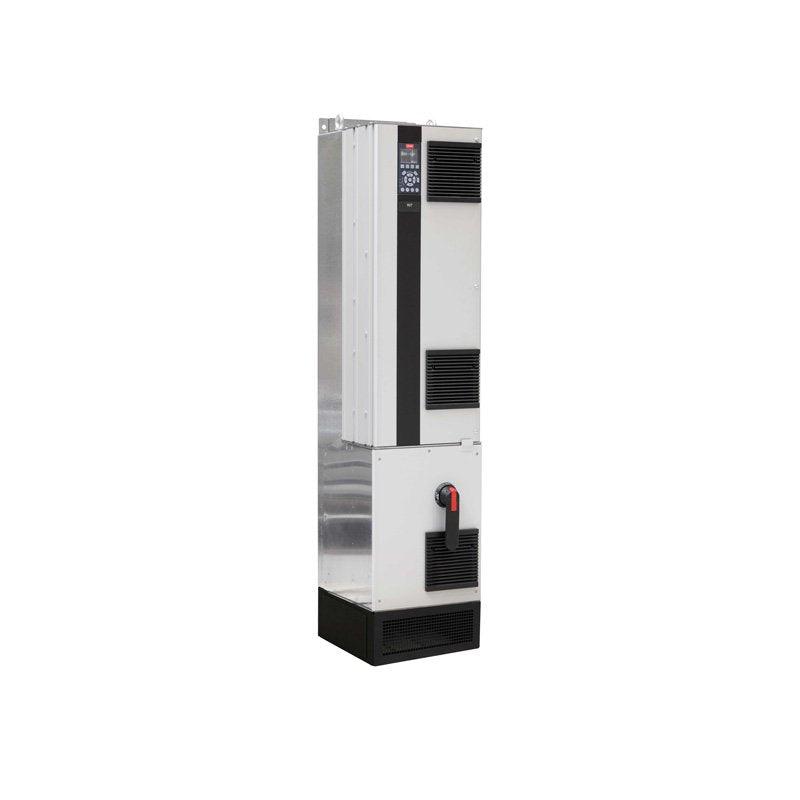

Frequency converter
FC-202N400T7E5MH2TLC3XQLX1XXANBXCXXXXD0
VLT® AQUA Drive FC-202
(N400) 400 KW / 550 HP, Three phase
525 - 690 VAC *, IP54/Type 12+main shield
RFI Filter
Safe Stop
Graphical LCP + USB
Coated PCB, Mains Disconnect + Fuse
Condition Based Monitoring CBM
EtherNet/IP MCA 121, No B Option
No C1 option, MCB-107 24V DC backup
Frame: D7H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 200.3 kg |
| Net weight | 200 kg |
| Volume | 0 l |
| EAN | 5715253307510 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N400 | (N400) 400 KW / 550 HP |
| Phase | T | Three phase |
| Mains Voltage | 7 | 525 - 690 VAC * |
| Possible rating issue | WARN01 | Possible Rating Issue: |
| Enclosure | E5M | IP54/Type 12+main shield |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | L | Graphical LCP + USB |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | Q | Heat-sink access |
| Software Release | LX1X | Condition Based Monitoring CBM |
| Software Language Pack | X | Standard Language Pack |
| A Option | AN | EtherNet/IP MCA 121 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | D7H | D7H |
| Typecode Part 1 | FC-202N400T7E5MH2TLC | |
| Typecode Part 2 | 3XQLX1XXANBXCXXXXD0 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 150% (HO) [KW] | 315 | |
| Power 110% (NO) [KW] | 400 | |
| Height [mm] | 1978,0 | |
| Width w/ no C options [mm] | 420,0 | |
| Depth [mm] | 386,0 | |
| Depth with Option A/B [mm] | 386,0 | |
| kVA | 478 | |
| Power Loss NO [W] | 5028 | |
| Power Loss NO [W] | 5155 | |
| Power Loss HO [W] | 4146 | |
| Power Loss HO [W] | 4258 | |
| Continuous Current (NO) [A] | 418 | |
| Intermittent Current (NO) [A] | 460 | |
| Continuous Current (NO) [A] | 400 | |
| Intermittent Current (NO) [A] | 440 | |
| Continuous Current (HO) [A] | 360 | |
| Intermittent Current (HO) [A] | 540 | |
| Continuous Current (HO) [A] | 344 | |
| Intermittent Current (HO) [A] | 516 | |
| Calculated Gross Weight [kg] | 200.3 | |
| Calculated Net Weight [kg] | 200 | |
| Material Gross Weight | 200.3 | |
| Material Net Weight | 200 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N400T7E5MH2TLC | |
| Modelcode02 | 3XQLX1XXANBXCXXXXD0 |
