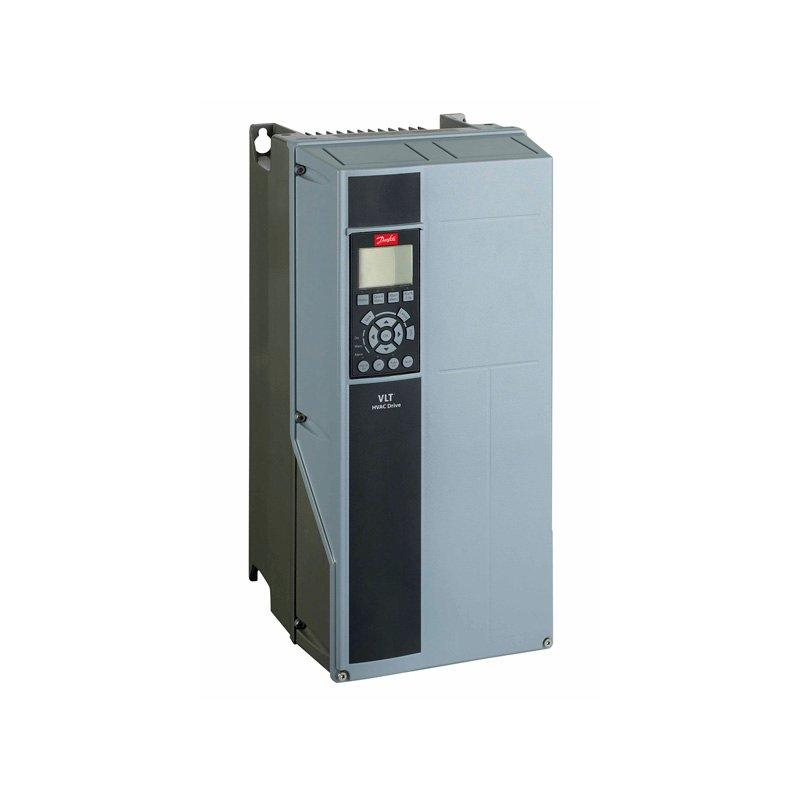

Frequency converter
FC-202P5K5S2E21H1XGXXXXSXXXXANBXCXXXXDX
VLT® AQUA Drive FC-202
(P5K5) 5.5 KW / 7.5 HP, Single phase
200 - 240 VAC, IP21 / Type 1
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
EtherNet/IP MCA 121, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 23.3 kg |
| Net weight | 23 kg |
| Volume | 0 l |
| EAN | 5715253320267 |
| Product View (Switch) | NAMC | North America (Regional) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P5K5 | (P5K5) 5.5 KW / 7.5 HP |
| Phase | S | Single phase |
| Mains Voltage | 2 | 200 - 240 VAC |
| Enclosure | E21 | IP21 / Type 1 |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AN | EtherNet/IP MCA 121 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B1 | B1 |
| Typecode Part 1 | FC-202P5K5S2E21H1XGX | |
| Typecode Part 2 | XXXSXXXXANBXCXXXXDX | |
| Product Catalog | NAMC | North America (Regional) |
| Power 110% (NO) [KW] | 5.5 | |
| Height [mm] | 480,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 8.72 | |
| Power Loss NO [W] | 110 | |
| Continuous Current (NO) [A] | 24.2 | |
| Intermittent Current (NO) [A] | 26.6 | |
| Calculated Gross Weight [kg] | 23.3 | |
| Calculated Net Weight [kg] | 23 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P5K5S2E21H1XGX | |
| Modelcode02 | XXXSXXXXANBXCXXXXDX |
