Frequency converter
FC-202P45KT6P21HXTGXXXXSXXXXAXBXCXXXXDX

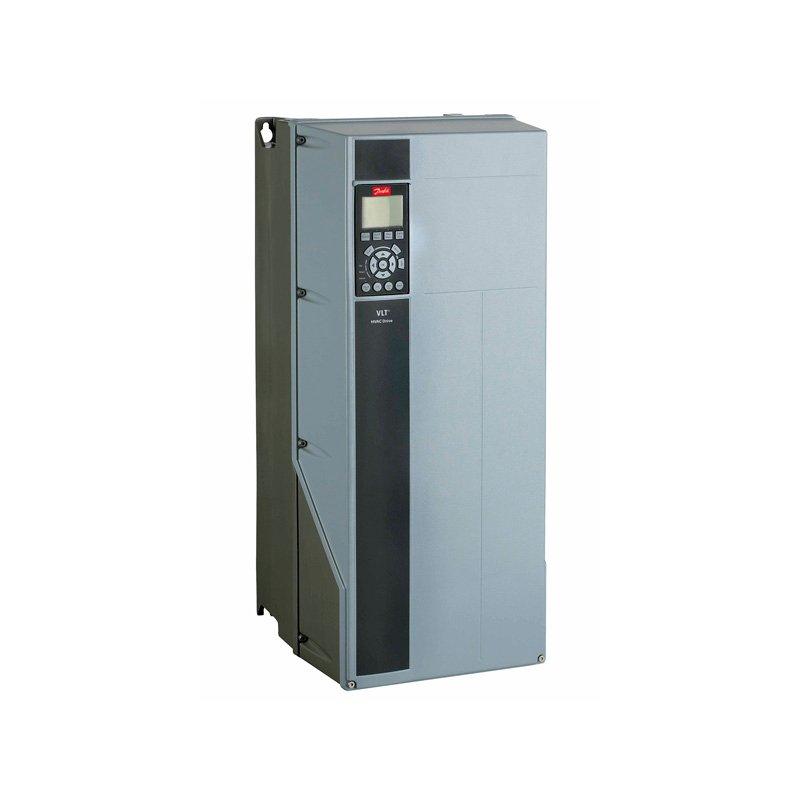

VLT® AQUA Drive FC-202
(P45K) 45 KW / 60 HP, Three phase
525 - 600 VAC, IP21 / Type 1 Backplate
No RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: C1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 44.3 kg |
| Net weight | 44 kg |
| Volume | 0 l |
| EAN | 5715253320274 |
| Product View (Switch) | NAMC | North America (Regional) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P45K | (P45K) 45 KW / 60 HP |
| Phase | T | Three phase |
| Mains Voltage | 6 | 525 - 600 VAC |
| Enclosure | P21 | IP21 / Type 1 Backplate |
| RFI Filter | HX | No RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | C1 | C1 |
| Typecode Part 1 | FC-202P45KT6P21HXTGX | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Product Catalog | NAMC | North America (Regional) |
| Power 150% (HO) [KW] | 37 | |
| Power 110% (NO) [KW] | 45 | |
| Height [mm] | 680,0 | |
| Width w/ no C options [mm] | 308,0 | |
| Depth [mm] | 310,0 | |
| Depth with Option A/B [mm] | 310,0 | |
| kVA | 61.7 | |
| Power Loss NO [W] | 900 | |
| Power Loss NO [W] | 900 | |
| Power Loss HO [W] | 740 | |
| Power Loss HO [W] | 740 | |
| Continuous Current (NO) [A] | 65 | |
| Intermittent Current (NO) [A] | 71.5 | |
| Continuous Current (NO) [A] | 62 | |
| Intermittent Current (NO) [A] | 68.2 | |
| Continuous Current (HO) [A] | 54 | |
| Intermittent Current (HO) [A] | 81 | |
| Continuous Current (HO) [A] | 52 | |
| Intermittent Current (HO) [A] | 78 | |
| Calculated Gross Weight [kg] | 44.3 | |
| Calculated Net Weight [kg] | 44 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P45KT6P21HXTGX | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
