Frequency converter
FC-202N400T4E2MH2TLC3XQSXXXXA0B4CXXXXD0

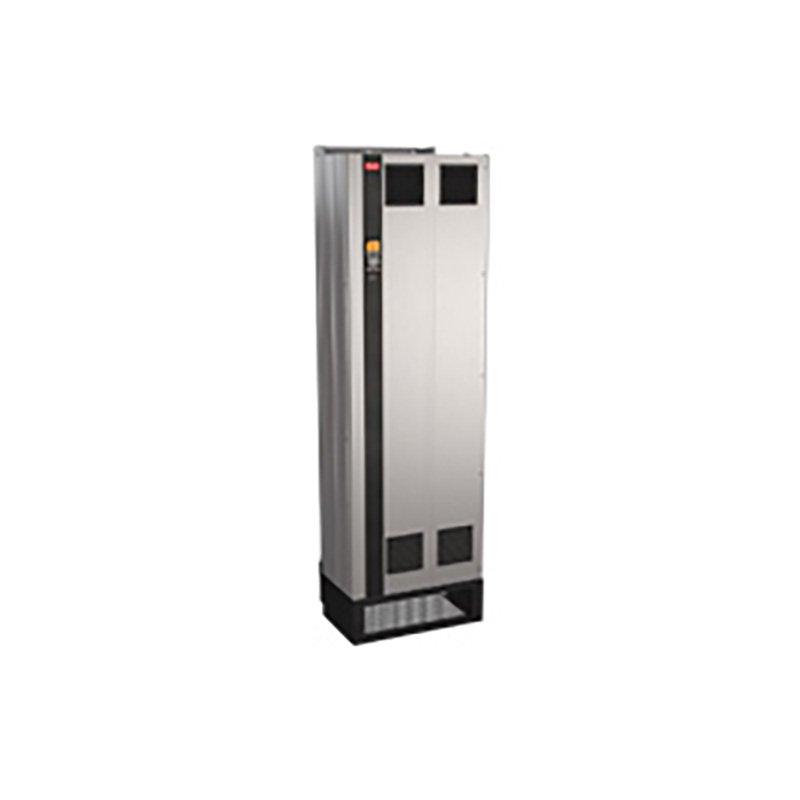

VLT® AQUA Drive FC-202
(N400) 400 KW / 550 HP, Three phase
380 - 480 VAC, IP21/Type 1+mains shield
RFI Filter
Safe Stop
Graphical LCP + USB
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
PROFIBUS DP MCA 101, MCB-114 VLT Sensor Input
No C1 option, MCB-107 24V DC backup
Frame: E1H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 295.3 kg |
| Net weight | 295 kg |
| Volume | 0 l |
| EAN | 5715253333724 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N400 | (N400) 400 KW / 550 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E2M | IP21/Type 1+mains shield |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | L | Graphical LCP + USB |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | Q | Heat-sink access |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | B4 | MCB-114 VLT Sensor Input |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | E1H | E1H |
| Typecode Part 1 | FC-202N400T4E2MH2TLC | |
| Typecode Part 2 | 3XQSXXXXA0B4CXXXXD0 | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 355 | |
| Power 110% (NO) [KW] | 400 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 600,0 | |
| Depth [mm] | 510,0 | |
| Depth with Option A/B [mm] | 510,0 | |
| kVA | 516 | |
| Power Loss NO [W] | 8036 | |
| Power Loss NO [W] | 6933 | |
| Power Loss HO [W] | 6851 | |
| Power Loss HO [W] | 5846 | |
| Continuous Current (NO) [A] | 745 | |
| Intermittent Current (NO) [A] | 820 | |
| Continuous Current (NO) [A] | 678 | |
| Intermittent Current (NO) [A] | 746 | |
| Continuous Current (HO) [A] | 658 | |
| Intermittent Current (HO) [A] | 987 | |
| Continuous Current (HO) [A] | 590 | |
| Intermittent Current (HO) [A] | 885 | |
| Calculated Gross Weight [kg] | 295.3 | |
| Calculated Net Weight [kg] | 295 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N400T4E2MH2TLC | |
| Modelcode02 | 3XQSXXXXA0B4CXXXXD0 |
