Frequency converter
FC-202N500T4E5MH2TGC7XXSXXXXAXBXCXXXXDX

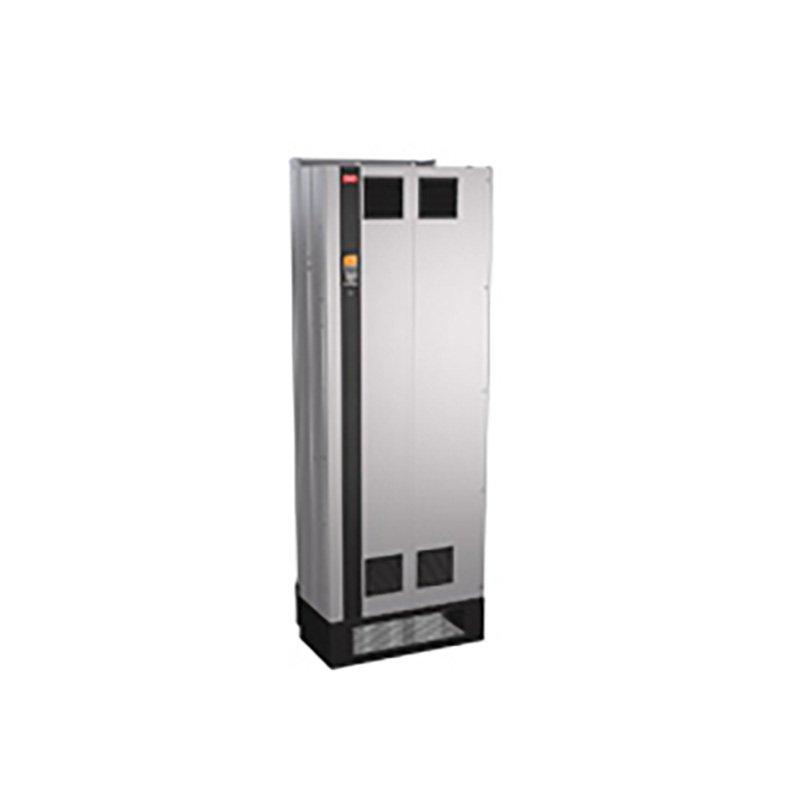

VLT® AQUA Drive FC-202
(N500) 500 KW / 650 HP, Three phase
380 - 480 VAC, IP54/Type 12+main shield
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: E2H
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 318.3 kg |
| Net weight | 318 kg |
| Volume | 0 l |
| EAN | 5715253353470 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | N500 | (N500) 500 KW / 650 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E5M | IP54/Type 12+main shield |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E2H | E2H |
| Typecode Part 1 | FC-202N500T4E5MH2TGC | |
| Typecode Part 2 | 7XXSXXXXAXBXCXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 450 | |
| Power 110% (NO) [KW] | 500 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 700,0 | |
| Depth [mm] | 510,0 | |
| Depth with Option A/B [mm] | 510,0 | |
| kVA | 610 | |
| Power Loss NO [W] | 9473 | |
| Power Loss NO [W] | 7809 | |
| Power Loss HO [W] | 8352 | |
| Power Loss HO [W] | 7182 | |
| Continuous Current (NO) [A] | 880 | |
| Intermittent Current (NO) [A] | 968 | |
| Continuous Current (NO) [A] | 780 | |
| Intermittent Current (NO) [A] | 858 | |
| Continuous Current (HO) [A] | 800 | |
| Intermittent Current (HO) [A] | 1200 | |
| Continuous Current (HO) [A] | 730 | |
| Intermittent Current (HO) [A] | 1095 | |
| Calculated Gross Weight [kg] | 318.3 | |
| Calculated Net Weight [kg] | 318 | |
| Plant from Orderline | F605 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202N500T4E5MH2TGC | |
| Modelcode02 | 7XXSXXXXAXBXCXXXXDX |
