Frequency converter
FC-202P55KT4E55H2XGX1XXSXXXXAQBXCXXXXD1

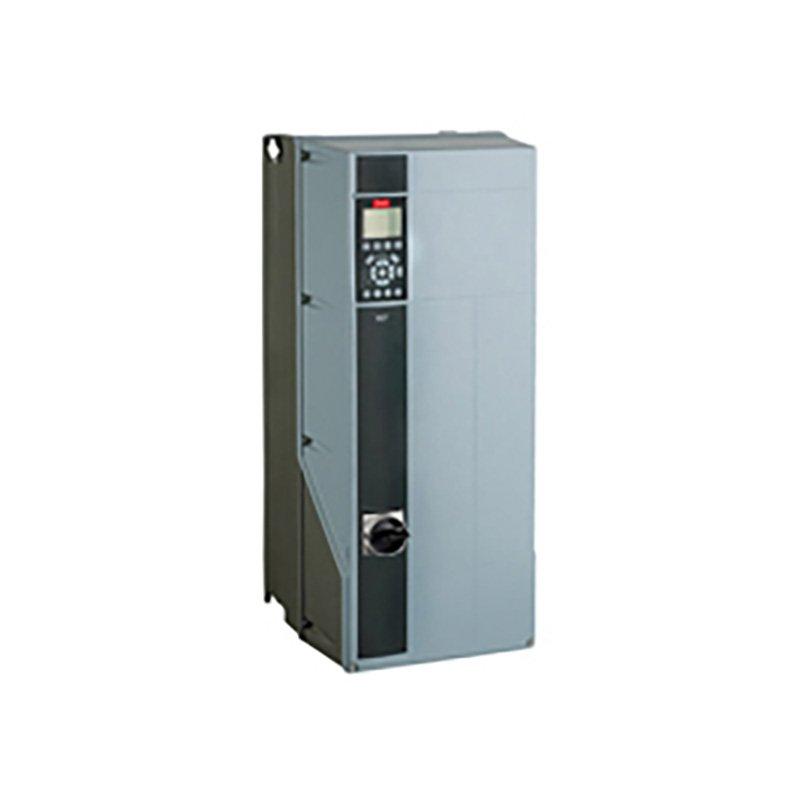

VLT® AQUA Drive FC-202
(P55K) 55 KW / 75 HP, Three phase
380 - 480 VAC, IP55 / Type 12
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect
Latest release std. SW.
Modbus TCP MCA 122, No B Option
No C1 option, MCB-117 Real time clock option
Frame: C1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 41.5 kg |
| Net weight | 41.2 kg |
| Volume | 228.095 l |
| EAN | 5715253379982 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P55K | (P55K) 55 KW / 75 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E55 | IP55 / Type 12 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | 1 | Mains Disconnect |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AQ | Modbus TCP MCA 122 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D1 | MCB-117 Real time clock option |
| Frame Size | C1 | C1 |
| Typecode Part 1 | FC-202P55KT4E55H2XGX | |
| Typecode Part 2 | 1XXSXXXXAQBXCXXXXD1 | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 45 | |
| Power 110% (NO) [KW] | 55 | |
| Height [mm] | 680,0 | |
| Width w/ no C options [mm] | 308,0 | |
| Depth [mm] | 310,0 | |
| Depth with Option A/B [mm] | 310,0 | |
| kVA | 73.4 | |
| Power Loss NO [W] | 1083 | |
| Power Loss NO [W] | 1083 | |
| Power Loss HO [W] | 891 | |
| Power Loss HO [W] | 891 | |
| Continuous Current (NO) [A] | 106 | |
| Intermittent Current (NO) [A] | 117 | |
| Continuous Current (NO) [A] | 105 | |
| Intermittent Current (NO) [A] | 116 | |
| Continuous Current (HO) [A] | 90 | |
| Intermittent Current (HO) [A] | 135 | |
| Continuous Current (HO) [A] | 80 | |
| Intermittent Current (HO) [A] | 120 | |
| Calculated Gross Weight [kg] | 42.3 | |
| Calculated Net Weight [kg] | 42 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P55KT4E55H2XGX | |
| Modelcode02 | 1XXSXXXXAQBXCXXXXD1 |
