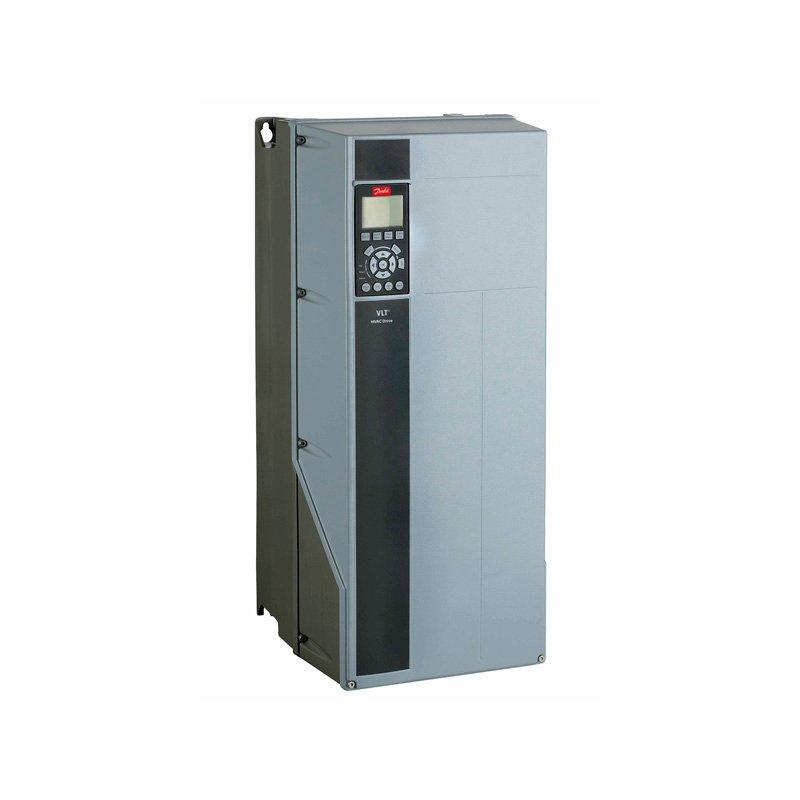

Frequency converter
FC-202P45KT4P66H5TXCXXXSXXXXAXB4CXXXXDX
VLT® AQUA Drive FC-202
(P45K) 45 KW / 60 HP, Three phase
380 - 480 VAC, (P66) IP66 / NEMA 4X Backplate
Marine,ruggedis RFI A2(C3)
Safe Stop
No Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, MCB-114 VLT Sensor Input
No C1 option, No D option
Frame: C1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 44.3 kg |
| Net weight | 44 kg |
| Volume | 228.095 l |
| EAN | 5715253381664 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P45K | (P45K) 45 KW / 60 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | P66 | (P66) IP66 / NEMA 4X Backplate |
| RFI Filter | H5 | Marine,ruggedis RFI A2(C3) |
| Brake - Safe Stop | T | Safe Stop |
| LCP | X | No Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | B4 | MCB-114 VLT Sensor Input |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | C1 | C1 |
| Typecode Part 1 | FC-202P45KT4P66H5TXC | |
| Typecode Part 2 | XXXSXXXXAXB4CXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Height [mm] | 680,0 | |
| Width w/ no C options [mm] | 308,0 | |
| Depth [mm] | 310,0 | |
| Depth with Option A/B [mm] | 310,0 | |
| Power Loss NO [W] | 843 | |
| Power Loss NO [W] | 843 | |
| Power Loss HO [W] | 697 | |
| Power Loss HO [W] | 697 | |
| Calculated Gross Weight [kg] | 44.3 | |
| Calculated Net Weight [kg] | 44 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P45KT4P66H5TXC | |
| Modelcode02 | XXXSXXXXAXB4CXXXXDX |
