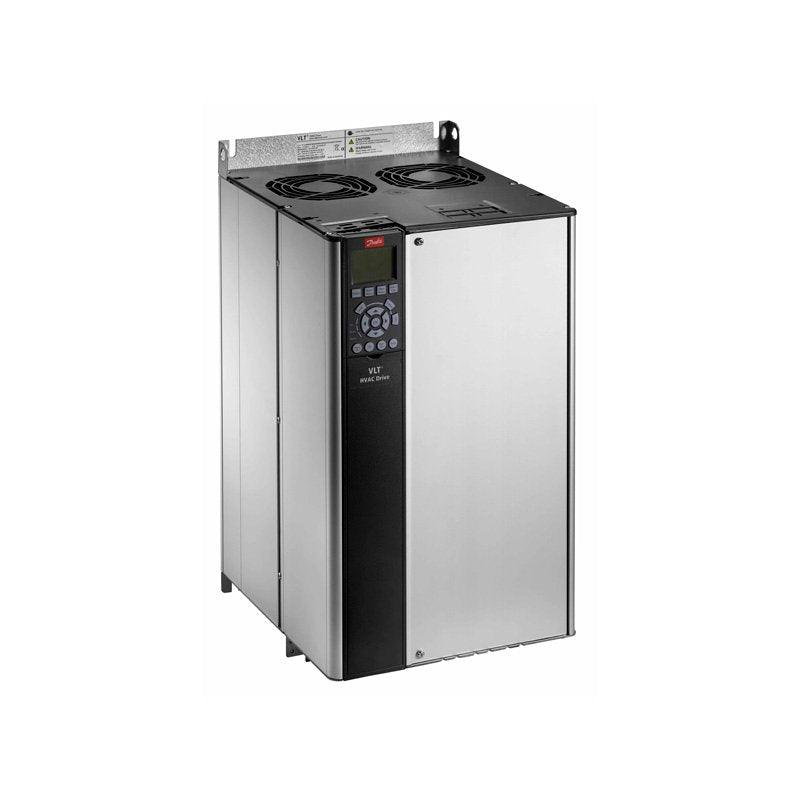

Frequency converter
FC-202P45KT4E20H1TGXXXXSXXXXA0BXCXRXXD0
VLT® AQUA Drive FC-202
(P45K) 45 KW / 60 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
MCB-113 Ext. Relay Card, MCB-107 24V DC backup
Frame: C3
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 50.5 kg |
| Net weight | 50.2 kg |
| Volume | 228.095 l |
| EAN | 5715253387642 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P45K | (P45K) 45 KW / 60 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E20 | (E20) IP20 / Chassis |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | R | MCB-113 Ext. Relay Card |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | C3 | C3 |
| Typecode Part 1 | FC-202P45KT4E20H1TGX | |
| Typecode Part 2 | XXXSXXXXA0BXCXRXXD0 | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 37 | |
| Power 110% (NO) [KW] | 45 | |
| Height [mm] | 550,0 | |
| Width w/ no C options [mm] | 308,0 | |
| Depth [mm] | 333,0 | |
| Depth with Option A/B [mm] | 333,0 | |
| kVA | 62.4 | |
| Power Loss NO [W] | 843 | |
| Power Loss NO [W] | 843 | |
| Power Loss HO [W] | 697 | |
| Power Loss HO [W] | 697 | |
| Continuous Current (NO) [A] | 90 | |
| Intermittent Current (NO) [A] | 99 | |
| Continuous Current (NO) [A] | 80 | |
| Intermittent Current (NO) [A] | 88 | |
| Continuous Current (HO) [A] | 73 | |
| Intermittent Current (HO) [A] | 110 | |
| Continuous Current (HO) [A] | 65 | |
| Intermittent Current (HO) [A] | 97.5 | |
| Calculated Gross Weight [kg] | 36.3 | |
| Calculated Net Weight [kg] | 36 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P45KT4E20H1TGX | |
| Modelcode02 | XXXSXXXXA0BXCXRXXD0 |
