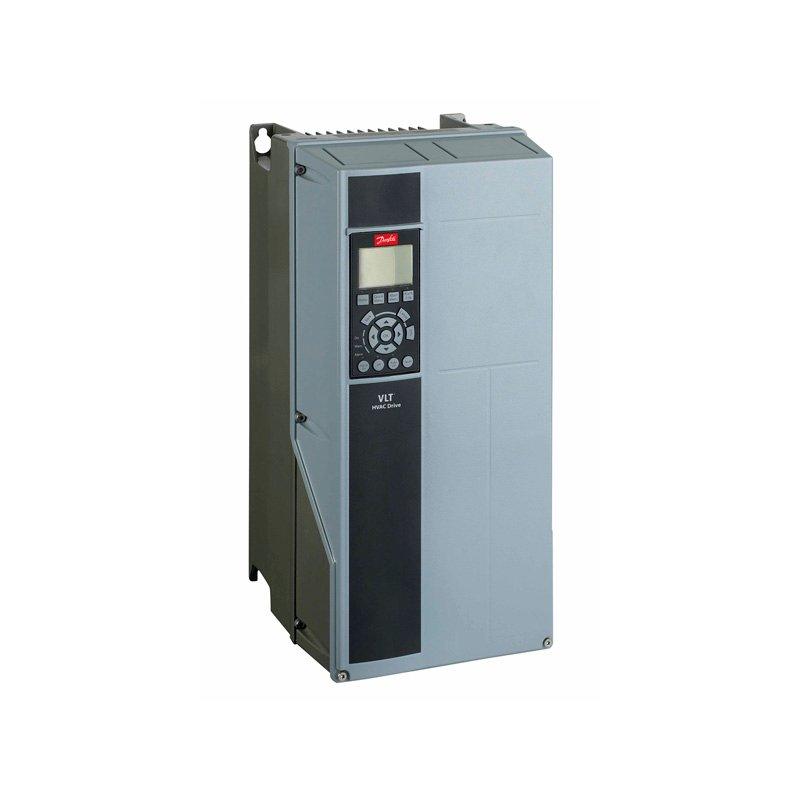

Frequency converter
FC-302P15KT5P21H1XXXXXXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-302
(P15K) 15 KW / 20 HP, Three phase
380 - 500 VAC, IP21 / Type 1 Backplate
(H1) RFI Class A1/B (C1)
No brake chopper
No Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 22.9 kg |
| Net weight | 22.6 kg |
| Volume | 144.67 l |
| EAN | 5702427177703 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | P15K | (P15K) 15 KW / 20 HP |
| Phase | T | Three phase |
| Mains Voltage | 5 | 380 - 500 VAC |
| Enclosure | P21 | IP21 / Type 1 Backplate |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | X | No Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B1 | B1 |
| Typecode Part 1 | FC-302P15KT5P21H1XXX | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 160% (HO) [KW] | 15 | |
| Power 110% (NO) [KW] | 18.5 | |
| Height [mm] | 480,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 22.2 | |
| Power Loss NO [W] | 465 | |
| Power Loss NO [W] | 465 | |
| Power Loss HO [W] | 379 | |
| Power Loss HO [W] | 379 | |
| Continuous Current (NO) [A] | 37.5 | |
| Intermittent Current (NO) [A] | 41.2 | |
| Continuous Current (NO) [A] | 34 | |
| Intermittent Current (NO) [A] | 37.4 | |
| Continuous Current (HO) [A] | 32 | |
| Intermittent Current (HO) [A] | 51.2 | |
| Continuous Current (HO) [A] | 27 | |
| Intermittent Current (HO) [A] | 43.2 | |
| Calculated Gross Weight [kg] | 23.7 | |
| Calculated Net Weight [kg] | 23.4 | |
| Material Gross Weight | 22.9 | |
| Material Net Weight | 22.6 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302P15KT5P21H1XXX | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
