7DS-00615Z-000060819
NXS00615-AZH1STS-ALA3B9B9B9

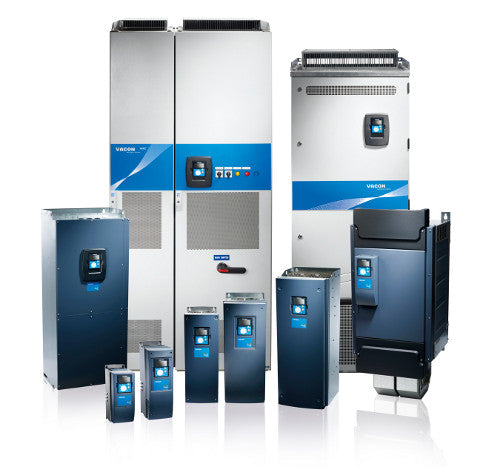

Vacon NXS Frequency Converter
380 –500 Vac (465-800 Vdc), 61 Amp,IPZ
Alpha-numeric display
IEC61800-3
Integrated Brake chopper
A Slot: AL,Basic I/O-board module
B Slot: A3,1RO(NO/NC),1RO(NC), therm
C Slot: B9,1RO(NO),5pcs of 41-240VAC
D Slot: B9,1RO(NO),5pcs of 41-240VAC
E Slot: B9,1RO(NO),5pcs of 41-240VAC
Manual: English
Frame 06
Other options according to Model code
Product details
| Gross weight |
153.3 kg |
| Net weight |
146 kg |
| Volume |
0 l |
| EAN |
5714853454976 |
VACON NX_
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
NXS |
NXS Frequency Converter |
| Customized Drive |
+BM25 |
Vacon Blue NXS/NXL Customizati |
| Mechanical Modification |
T |
Mounting bracket |
| Mains voltage |
5- |
380 –500 Vac (465-800 Vdc) |
| Current |
0061 |
61 Amp |
| Control Keypad |
A |
Alpha-numeric display |
| Enclosure |
Z |
IPZ |
| EMC emission levels |
H |
IEC61800-3 |
| Brake Chopper |
1 |
Integrated Brake chopper |
| Electrical Modification |
S |
6-pulse with choke |
| Card Modifications |
S- |
Direct connection / standard |
| Shipping Package |
+GSCB |
Cardboard box as Shipping pack |
| Warranty |
+WT01 |
Warranty 12/18 months |
| Gland Plate Option |
+QGLC |
Inch conduit plate |
| Option Slot A |
AL |
AL,Basic I/O-board module |
| Option Slot B |
A3 |
A3,1RO(NO/NC),1RO(NC), therm |
| Option Slot C |
B9 |
B9,1RO(NO),5pcs of 41-240VAC |
| Option Slot D |
B9 |
B9,1RO(NO),5pcs of 41-240VAC |
| Option Slot E |
B9 |
B9,1RO(NO),5pcs of 41-240VAC |
| Firmware language package |
+FL22 |
UK,FR,IT,ES,PT,WestEur |
| Documentation Level |
+DQCK |
Quick guide user manual |
| Documentation Lang. Preference |
+DLUK |
English |
| System Firmware |
+FNS02 |
System software NXS2 |
| Software license |
NONE |
no software license |
| Application |
+A000 |
No Special Application |
| Parameter Set |
NONE |
none |
| Motor Parameter Default |
+LS50 |
Default Motor frequency 50HZ |
| Labeling options |
+LPC1 |
no additional labels |
| Special BoM structure |
+SPC0 |
Standard BoM Configuration |
| CE Approval |
+GACE |
CE Approval |
| UL Approval |
+GAUL |
UL approval |
| RCM Approval |
+GACT |
RCM Approval N16307 |
| Marine approval |
NONE |
no marine approval |
| KC Approval |
+GAKC |
Korean Approval |
| Ukrainian Approval |
+GAUA |
Ukrainian Approval |
| EAC Approval |
+GAEA |
EAC Approval |
| Region |
-R00 |
International (-R00) |
| Frame Size |
FR06 |
Frame 06 |
| Sub family identification |
NONE |
Normal customer ordered |
| Customer specific power variat |
NONE |
Normal power rating |
| Typecode Part 1 |
7DS-00615Z |
| Typecode Part 2 |
-000060819 |
| Salestext |
FR0600615-ZH |
| Modelcode01 |
NXS00615-AZH1STS- |
| Modelcode02 |
ALA3B9B9B9 |
| Calculated Net Weight [kg] |
18.5 |
| Calculated Gross Weight [kg] |
19.5 |
| Motor Power Low Overload [kW] |
30 |
| Motor Power High Overload [kW] |
22 |
| Dimensions WxHxD [mm] |
195X561X237 |
| Continuous Current (NO) [A] |
61 |
| Continuous Current (HO) [A] |
46 |
| Prefix VXSNXLM |
7 |
| Platform VXSNXLM |
D |
| Stock Code |
7DS-00615Z |
| check if complete |
OK |
| Material Gross Weight |
153.3 |
| Material Net Weight |
146 |
| Help Counter |
1 |
| Plant from Orderline |
2611 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
