FCD302P1K5T4W66H1SXXXXXXXXXXALBXXXXXXDX
FCD302P1K5T4W66H1SXXXXXXXXXXALBXXXXXXDX

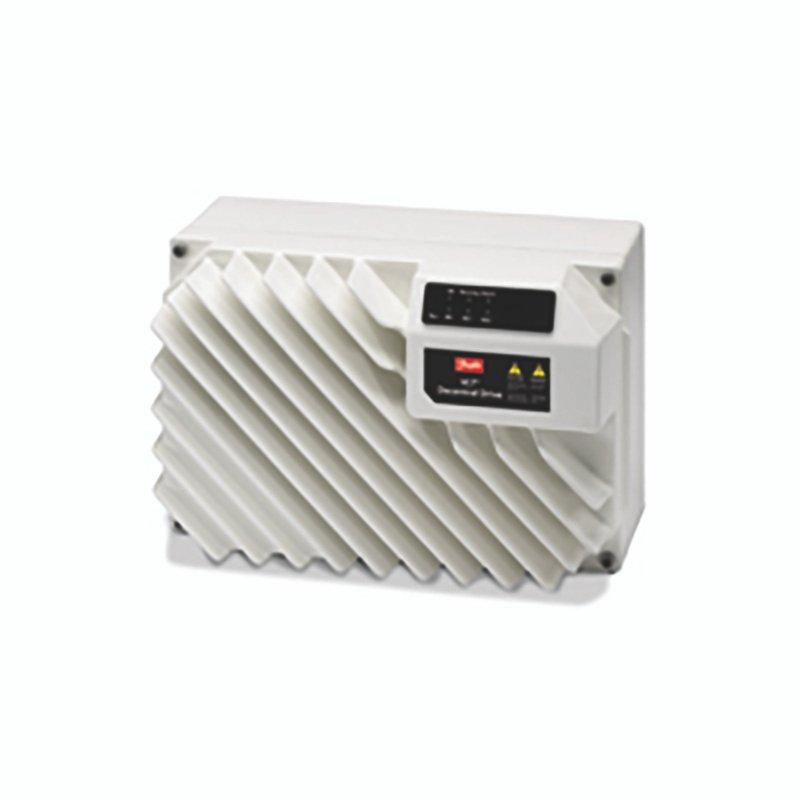

VLT® Decentral Drive FCD 302
1.5 kW / 2.0 HP, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, Brake chop. + mech. brake, Drive part, small encl., No brackets,
No installation box, No switch option, No Display Connector
Model code:FCD302P1K5T4W66H1SXXXXXXXXXXALBXXXXXXDX
The VLT® Decentral Drive FCD 302 is a complete drive designed for decentral mounting. It can be mounted on the.
| Gross weight |
6.5 kg |
| Net weight |
6.4 kg |
| Volume |
31.95 l |
| EAN |
5710107793433 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® DECENTRAL FCD 302 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FCD |
VLT® Decentral Drive FCD |
| VLT Series |
302 |
302 |
| Power Rating |
P1K5 |
1.5 kW / 2.0 HP |
| Mains Voltage |
T4 |
380-480VAC (Three phased) |
| Enclosure |
W66 |
Standard White IP66/NEMA4X |
| RFI Filter |
H1 |
RFI Class A1/C2 |
| Brake |
S |
Brake chop. + mech. brake |
| Hardware Configuration |
X |
Drive part, small encl. |
| Brackets |
X |
No brackets |
| Threads |
X |
No installation box |
| Switch Option |
X |
No switch option |
| Display |
X |
No Display Connector |
| Sensor Plugs |
X |
No sensor plugs |
| Motor Plug |
X |
No motor plug |
| Mains Plug |
X |
No mains plug |
| Fieldbus Plug |
X |
No fieldbus plug |
| Reserved |
X |
Reserved |
| A Option |
AL |
Profinet |
| B Option |
BX |
No B option |
| Reserved for SW |
XXXXX |
Reserved for SW |
| D Option |
DX |
No option |
| FCD302 Frame Size |
MF1 |
(MF1) MF1 |
| Typecode Part 1 |
FCD302P1K5T4W66H1SXXXXXXXXXX |
| Typecode Part 2 |
ALBXXXXXXDX |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Calculated Gross Weight [kg] |
7.1 |
| Calculated Net Weight [kg] |
6.8 |
| Material Gross Weight |
6.5 |
| Material Net Weight |
6.4 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FCD302P1K5T4W66H1SXXXXXXXXXX |
| Modelcode02 |
ALBXXXXXXDX |
