Frequency converter
FC-103P400T4E54N4XGC3XXSXXXXAXBXCXXXXDX

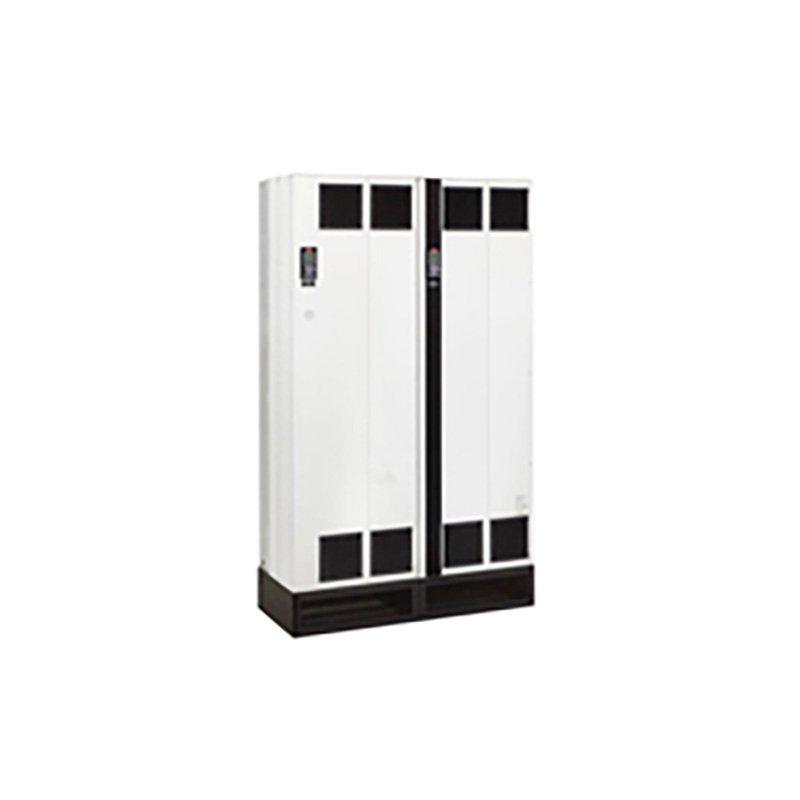

VLT® Refrigeration Drive FC-103
400 KW / 550 HP, Three phase
380 - 480 VAC, (E54) IP54 / Type 12
LHD - AAF006 filter + A1 RFI
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: E9
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 272.3 kg |
| Net weight | 272 kg |
| Volume | 0 l |
| EAN | 5710108811983 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | P400 | 400 KW / 550 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E54 | (E54) IP54 / Type 12 |
| RFI Filter | N4 | LHD - AAF006 filter + A1 RFI |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E9 | E9 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103P400T4E54N4XGC | |
| Typecode Part 2 | 3XXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | 400 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 1200,0 | |
| Depth [mm] | 500,0 | |
| Depth with Option A/B [mm] | 500,0 | |
| kVA | 516 | |
| Power Loss NO [W] | 17180 | |
| Power Loss NO [W] | 15852 | |
| Continuous Current (NO) [A] | 745 | |
| Intermittent Current (NO) [A] | 820 | |
| Continuous Current (NO) [A] | 678 | |
| Intermittent Current (NO) [A] | 746 | |
| Calculated Gross Weight [kg] | 272.3 | |
| Calculated Net Weight [kg] | 272 | |
| Material Gross Weight | 272.3 | |
| Material Net Weight | 272 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103P400T4E54N4XGC | |
| Modelcode02 | 3XXSXXXXAXBXCXXXXDX |
