Frequency converter
FC-103N800T7E21H2XGC7XXSXXXXAXBKCXXXXDX

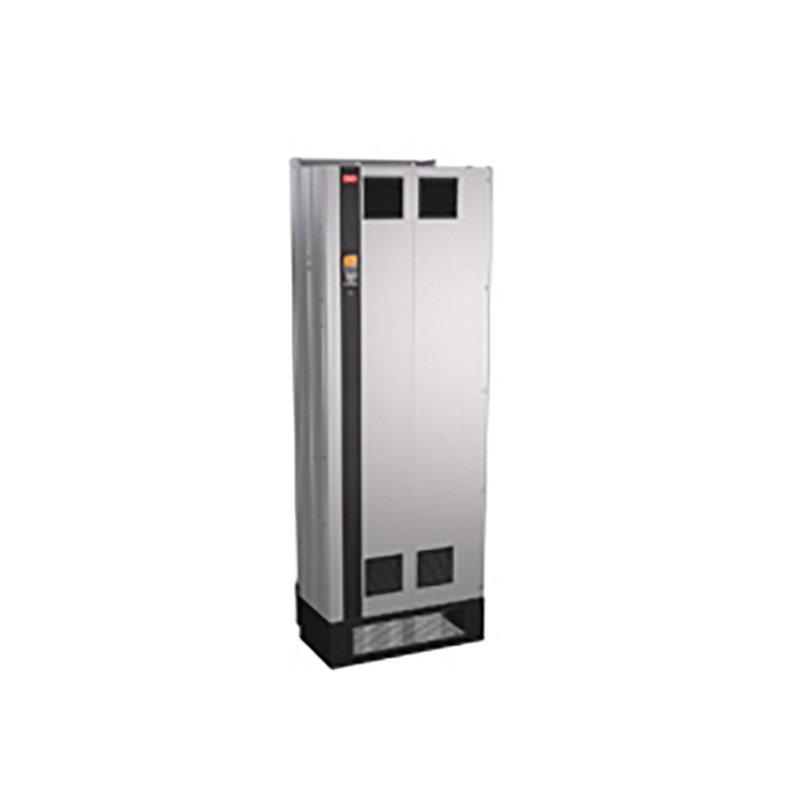

VLT® Refrigeration Drive FC-103
(N800) 800 KW / 1200 HP, Three phase
525 - 690 VAC *, IP21 / Type 1
RFI filter Class A2
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
No A Option, MCB-101 General purpose I/O
No C1 option, No D option
Frame: E2H
Other options according to Model code
Whether you want to operate compressors, pumps or fans, the VLT® Refrigeration Drive FC 103 gives you the opportuni.
| Gross weight | 318.3 kg |
| Net weight | 318 kg |
| Volume | 0 l |
| EAN | 5714853054640 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Refrigeration Drive |
| Series | 103 | 103 |
| Power Rating | N800 | (N800) 800 KW / 1200 HP |
| Phase | T | Three phase |
| Mains Voltage | 7 | 525 - 690 VAC * |
| Enclosure | E21 | IP21 / Type 1 |
| RFI Filter | H2 | RFI filter Class A2 |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BK | MCB-101 General purpose I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E2H | E2H |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-103N800T7E21H2XGC | |
| Typecode Part 2 | 7XXSXXXXAXBKCXXXXDX | |
| Power 110% (NO) [KW] | 800 | |
| Height [mm] | 2000,0 | |
| Width w/ no C options [mm] | 700,0 | |
| Depth [mm] | 510,0 | |
| Depth with Option A/B [mm] | 510,0 | |
| kVA | 1016 | |
| Power Loss NO [W] | 12723 | |
| Power Loss NO [W] | 12321 | |
| Continuous Current (NO) [A] | 889 | |
| Intermittent Current (NO) [A] | 978 | |
| Continuous Current (NO) [A] | 850 | |
| Intermittent Current (NO) [A] | 935 | |
| Calculated Gross Weight [kg] | 318.3 | |
| Calculated Net Weight [kg] | 318 | |
| Material Gross Weight | 318.3 | |
| Material Net Weight | 318 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-103N800T7E21H2XGC | |
| Modelcode02 | 7XXSXXXXAXBKCXXXXDX |
