Frequency converter
FC-202P1K5T4Z55H1XGCXOXSXXXXA0BKCXXXXD0

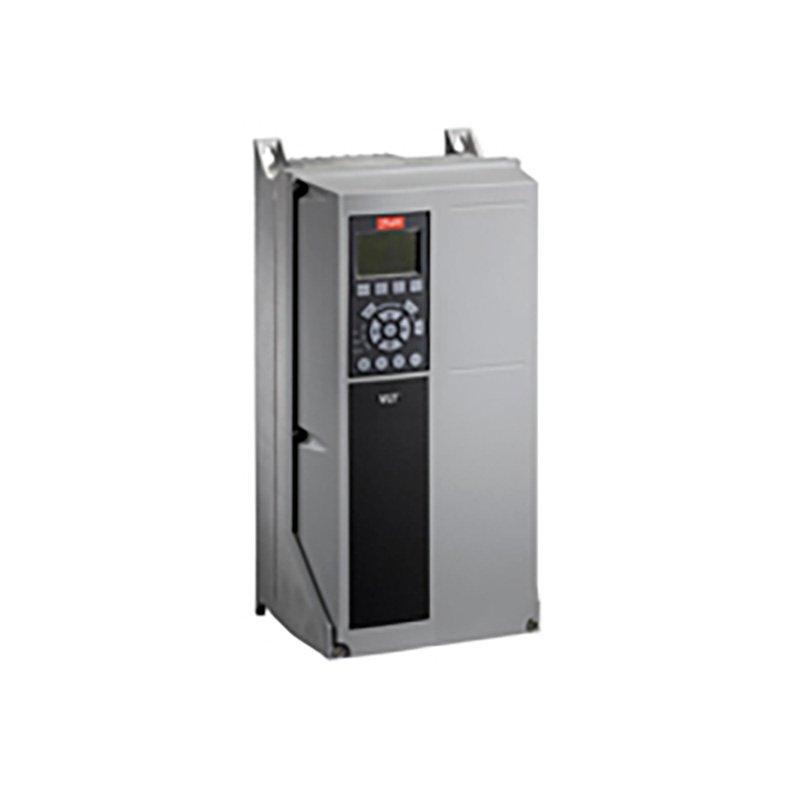

VLT® AQUA Drive FC-202
(P1K5) 1.5 KW / 2.0 HP, Three phase
380 - 480 VAC, IP55 / Type 12 A4 Frame
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, MCB-101 General purp. I/O
No C1 option, MCB-107 24V DC backup
Frame: A4
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 9.2 kg |
| Net weight | 8.9 kg |
| Volume | 52.36 l |
| EAN | 5715253400044 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P1K5 | (P1K5) 1.5 KW / 2.0 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | Z55 | IP55 / Type 12 A4 Frame |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | O | Metric thread cable entry |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BK | MCB-101 General purp. I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | D0 | MCB-107 24V DC backup |
| Frame Size | A4 | A4 |
| Typecode Part 1 | FC-202P1K5T4Z55H1XGC | |
| Typecode Part 2 | XOXSXXXXA0BKCXXXXD0 | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 1.5 | |
| Power 110% (NO) [KW] | 1.5 | |
| Height [mm] | 390,0 | |
| Width w/ no C options [mm] | 200,0 | |
| Depth [mm] | 175,0 | |
| Depth with Option A/B [mm] | 175,0 | |
| kVA | 2.84 | |
| Power Loss NO [W] | 62 | |
| Power Loss NO [W] | 62 | |
| Power Loss HO [W] | 62 | |
| Power Loss HO [W] | 62 | |
| Continuous Current (NO) [A] | 4.1 | |
| Intermittent Current (NO) [A] | 4.51 | |
| Continuous Current (NO) [A] | 3.4 | |
| Intermittent Current (NO) [A] | 3.74 | |
| Continuous Current (HO) [A] | 4.1 | |
| Intermittent Current (HO) [A] | 6.15 | |
| Continuous Current (HO) [A] | 3.4 | |
| Intermittent Current (HO) [A] | 5.1 | |
| Calculated Gross Weight [kg] | 9.2 | |
| Calculated Net Weight [kg] | 8.9 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P1K5T4Z55H1XGC | |
| Modelcode02 | XOXSXXXXA0BKCXXXXD0 |
