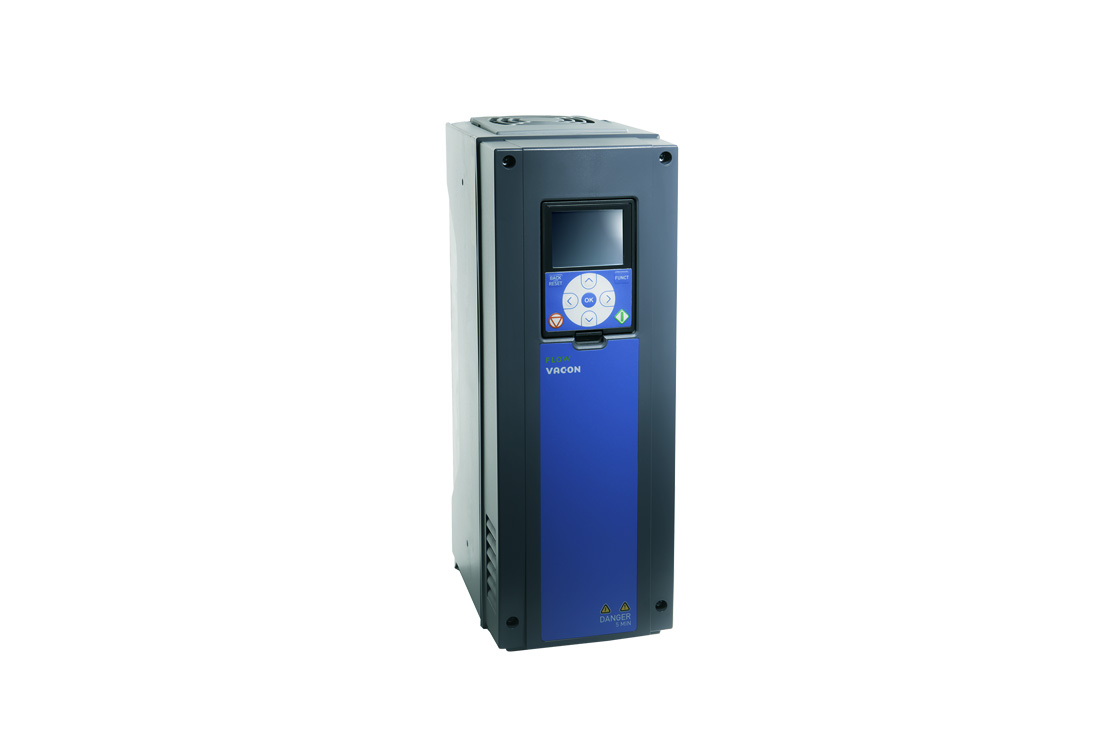

VACON 100 FLOW is an AC drive dedicated to improving flow control in Building Automation and Water & Wastewater applications.
VACON 100 FLOW is an AC drive dedicated to improving flow control in Building Automation and Water & Wastewater applications. It combines core functionality of VACON 100 with features that are specifically designed for flow control applications, such as Multipump solutions and application selection menus.
Features
- Power range of 0.55 kW/0.75 HP to 160 kW/250 HP
- Available in two voltage versions 208 – 240 V and 380 – 500 V
- IP21/UL Type 1 or IP54/UL Type 12 certified enclosures
- Dedicated flow control functionality
- Multipump single drive, Multimaster and Multifollower pump control solutions as standard
- Graphical keypad with wizards and application menus
- Electrolytic-free DC link capacitors for long lifetime and high reliability
- Integrated Safe torque off (STO) option, Safe Stop and ATEX thermistor protection
- BACnet IP, Modbus TCP, Profinet IO (optional) and Ethernet IP (optional) via on-board Ethernet
- Modbus RTU, Metasys N2 and BACnet MSTP via RS485 available as standard
Model range
Vacon 100 Flow series, voltage 208-240 V (3 phase)
|
Model |
Capacity, kW |
Current, A |
Deceleration time, sec |
Dimensions (W x H x D), mm |
|---|---|---|---|---|
|
VACON0100-3L-0003-2-flow |
0,55 |
3.7 |
0,1-3000 |
128х328х190 |
|
VACON0100-3L-0004-2-flow |
0,75 |
4.8 |
0,1-3000 |
128х328х190 |
|
VACON0100-3L-0007-2-flow |
1,1 |
6.6 |
0,1-3000 |
128х328х190 |
|
VACON0100-3L-0008-2-flow |
1,5 |
8 |
0,1-3000 |
128х328х190 |
|
VACON0100-3L-0011-2-flow |
2,2 |
11 |
0,1-3000 |
128х328х190 |
|
VACON0100-3L-0012-2-flow |
3 |
12.5 |
0,1-3000 |
128х328х190 |
|
VACON0100-3L-0018-2-flow |
4 |
18 |
0,1-3000 |
144х419х214 |
|
VACON0100-3L-0024-2-flow |
5,5 |
24 |
0,1-3000 |
144х419х214 |
|
VACON0100-3L-0031-2-flow |
7,5 |
31 |
0,1-3000 |
144х419х214 |
|
VACON0100-3L-0048-2-flow |
11 |
48 |
0,1-3000 |
195х557х229 |
|
VACON0100-3L-0062-2-flow |
15 |
62 |
0,1-3000 |
195х557х229 |
|
VACON0100-3L-0075-2-flow |
18,5 |
75 |
0,1-3000 |
237х660х259 |
|
VACON0100-3L-0088-2-flow |
22 |
88 |
0,1-3000 |
237х660х259 |
|
VACON0100-3L-0105-2-flow |
30 |
105 |
0,1-3000 |
237х660х259 |
|
VACON0100-3L-0140-2-flow |
37 |
143 |
0,1-3000 |
290х966х343 |
|
VACON0100-3L-0170-2-flow |
45 |
170 |
0,1-3000 |
290х966х343 |
|
VACON0100-3L-0205-2-flow |
55 |
208 |
0,1-3000 |
290х966х343 |
|
VACON0100-3L-0261-2-flow |
75 |
261 |
0,1-3000 |
480х1150х365 |
|
VACON0100-3L-0310-2-flow |
90 |
310 |
0,1-3000 |
480х1150х365 |
Vacon 100 Flow series, voltage 380-500 V (3 phase)
| Model | Capacity, kW |
Current, A |
Deceleration time, sec | Dimensions (W x H x D), mm |
|---|---|---|---|---|
| VACON0100-3L-0003-5-flow | 1,1 | 3.4 | 0,1-3000 | 128х328х190 |
| VACON0100-3L-0004-5-flow | 1,5 | 4.8 | 0,1-3000 | 128х328х190 |
| VACON0100-3L-0005-5-flow | 2,2 | 5.6 | 0,1-3000 | 128х328х190 |
| VACON0100-3L-0008-5-flow | 3 | 8 | 0,1-3000 | 128х328х190 |
| VACON0100-3L-0009-5-flow | 4 | 9.6 | 0,1-3000 | 128х328х190 |
| VACON0100-3L-0012-5-flow | 5,5 | 12 | 0,1-3000 | 128х328х190 |
| VACON0100-3L-0016-5-flow | 7,5 | 16 | 0,1-3000 | 144х419х214 |
| VACON0100-3L-0023-5-flow | 11 | 23 | 0,1-3000 | 144х419х214 |
| VACON0100-3L-0031-5-flow | 15 | 31 | 0,1-3000 | 144х419х214 |
| VACON0100-3L-0038-5-flow | 18,5 | 38 | 0,1-3000 | 195х557х229 |
| VACON0100-3L-0046-5-flow | 22 | 46 | 0,1-3000 | 195х557х229 |
| VACON0100-3L-0061-5-flow | 30 | 61 | 0,1-3000 | 195х557х229 |
| VACON0100-3L-0072-5-flow | 37 | 72 | 0,1-3000 | 237х660х259 |
| VACON0100-3L-0087-5-flow | 45 | 87 | 0,1-3000 | 237х660х259 |
| VACON0100-3L-0105-5-flow | 55 | 105 | 0,1-3000 | 237х660х259 |
| VACON0100-3L-0140-5-flow | 75 | 140 | 0,1-3000 | 290х966х343 |
| VACON0100-3L-0170-5-flow | 90 | 170 | 0,1-3000 | 290х966х343 |
| VACON0100-3L-0205-5-flow | 110 | 205 | 0,1-3000 | 290х966х343 |
| VACON0100-3L-0261-5-flow | 132 | 261 | 0,1-3000 | 480х1150х365 |
| VACON0100-3L-0310-5-flow | 160 | 310 | 0,1-3000 | 480х1150х365 |
