- Available in voltages 208-240 and 380-480V
- Cold plate cooling
- Unique low depth design
- Safe Torque Off (STO) mode in accordance with SIL2
- Ambient temperature rating up to 70°C
- Induction and permanent magnet (PM) motor control
- Integrated brake resistor
- Status LEDs on drive
- Expansion slot for I/0 or fieldbus
- Handheld text keypad with copy function
- Single plug I/0 connector for OEMs
Additional links:
Technical documentation and Downloads
Model range

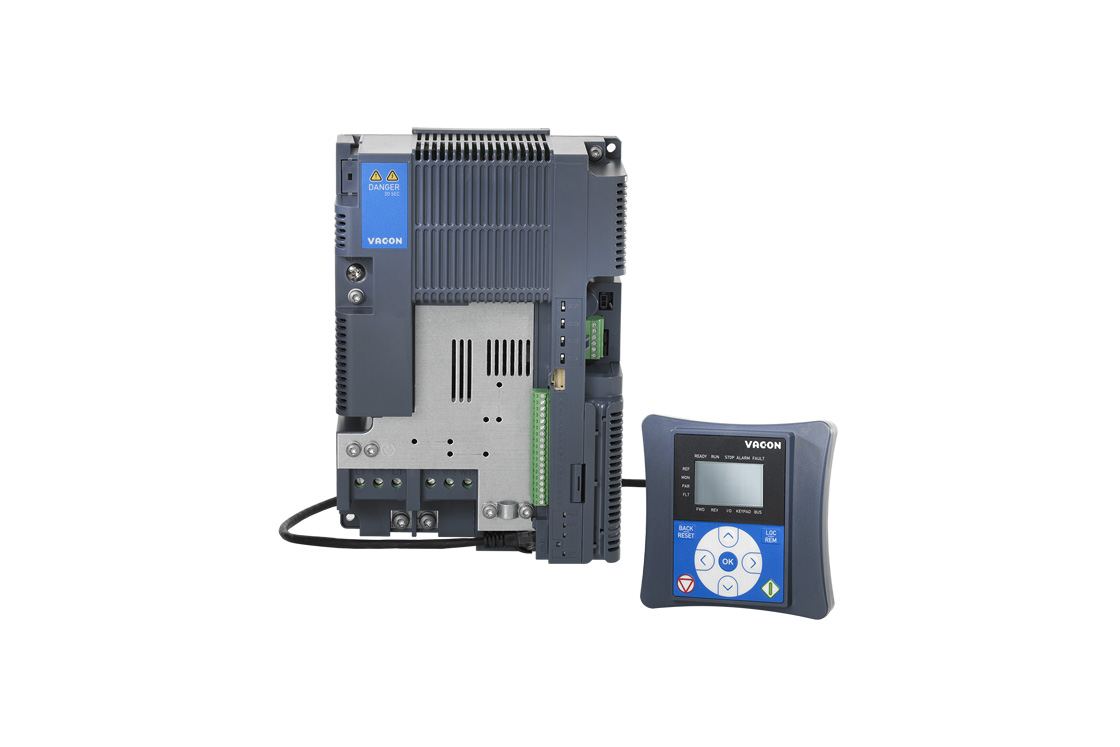

Vacon 20 Cold Plate (CP) series, voltage 208-240 (3 phase)
| Model | Capacity kW |
Current A |
Deceleration time, sec |
|---|---|---|---|
| VACON0020-3L-0004-2-CP | 0,75 | 3.7 | 0,1-3000 |
| VACON0020-3L-0005-2-CP | 1,1 | 4.8 | 0,1-3000 |
| VACON0020-3L-0007-2-CP | 1,5 | 7 | 0,1-3000 |
| VACON0020-3L-0011-2-CP | 2,2 | 11 | 0,1-3000 |
| VACON0020-3L-0012-2-CP | 3 | 12.5 | 0,1-3000 |
| VACON0020-3L-0017-2-CP | 4 | 17.5 | 0,1-3000 |
Vacon 20 Cold Plate (CP) series, voltage 380-480 V (3 phase)
| Model | Capacity, kW |
Current, A |
Deceleration time, sec | Dimensions (W x H x D), mm |
|---|---|---|---|---|
| VACON0020-3L-0003-4-CP | 0,75 | 2.4 | 0,1-3000 | 133х159х80 |
| VACON0020-3L-0004-4-CP | 1,1 | 3.3 | 0,1-3000 | 133х159х80 |
| VACON0020-3L-0005-4-CP | 1,5 | 4.3 | 0,1-3000 | 133х159х80 |
| VACON0020-3L-0006-4-CP | 2,2 | 5.6 | 0,1-3000 | 133х159х80 |
| VACON0020-3L-0008-4-CP | 3 | 7.6 | 0,1-3000 | 133х159х80 |
| VACON0020-3L-0009-4-CP | 4 | 9 | 0,1-3000 | 161х240х83 |
| VACON0020-3L-0012-4-CP | 5,5 | 12 | 0,1-3000 | 161х240х83 |
| VACON0020-3L-0016-4-CP | 7,5 | 16 | 0,1-3000 | 161х240х83 |
