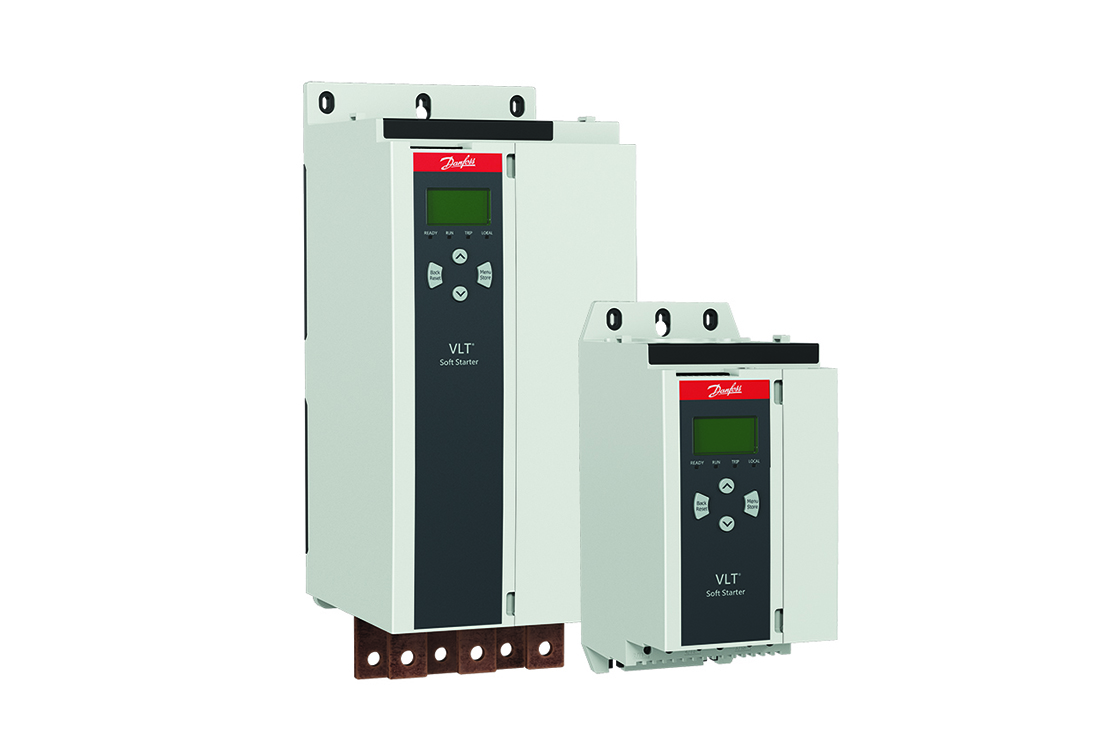

VLT® Soft Starter MCD 600

VLT® Soft Starter MCD 600

Superior soft start performance for fixed-speed applications

The VLT® Soft Starter MCD 600 combines the latest in advanced controls and protections with an increased level of intelligence for superior performance in fixed-speed applications.

The MCD 600 is more flexible than ever to install, thanks to a wide variety of Ethernet and serial-based communication option cards, application-dedicated smart cards and support for eight languages.

An integrated bypass ensures both extremely high efficiency and harmonic-free operation at full speed, reducing energy consumed and required cooling capacity. Ease of use is in focus with features such as the pump-clean function, PowerThrough operation, and calendar or run time-based scheduling. More extensive motor and starter protections ensure more uptime.

Supply voltages and power range

Mains voltage range

  • 3 x 200-525 VAC (T5)
  • 3 x 380-690 VAC (T7)

Current range and enclosure

  • IP20: 20-129 A (nominal)
  • IP00: 144-579 A (nominal)

Features and benefits

Inbuilt impeller cleaning assistance with Pump clean functionality

Easy application analysis with up to 348 events logged, as well as QR code scan for serial number and event data

Easy data access and reduced startup and upgrade time thanks to integrated USB port

More reliability, more uptime with expanded motor and controller protections

Flexibility for low speed applications, with Jog function

Improved uptime with PowerThrough function which uses 2-phase control if one phase is damaged by shorted SCR

Easy connectivity for the soft starter to Ethernet-based networks, such as PROFINET and EtherNet/IP

Programming is quick and easy thanks to three menu systems (Quick Menu, Application Setup and Main Menu), a four-line graphical display and a logic keypad

The best starting and stopping profile for the application is chosen using Adaptive Acceleration Control (AAC)

Installation costs are lower and there is less stress on the motor thanks to DC injection braking distributed evenly over three phases

Space can be saved, cabling costs reduced and retrofitting made easier thanks to internal bypass contactors and adjustable bus bars which allow for both top and bottom entry


Type  Name  Download  File type
Certificate – BG ISO 9001 Drives BV 500F1065en 278.5 KB PDF
Certificate – BG MCD 600 Declaration of conformity 421.6 KB PDF
Operating guide – AQ VLT® Soft Starter MCD 600 3.3 MB PDF
Fact sheet – AM VLT® Soft Starter MCD 600 436.5 KB PDF
Installation guide – AN VLT® Soft Starter MCD 600 DeviceNet Card 1.7 MB PDF
Installation guide – AN VLT® SOFT STARTER MCD 600, Finger Guards 192.2 KB PDF
Installation guide – AN VLT® SOFT STARTER MCD 600, Remote 1.0 MB PDF
Installation guide – AN VLT® Soft Starter MCD600 Modbus RTU Card 1.8 MB PDF
Installation guide – AN VLT® Soft Starter MCD600 PROFIBUS Card 17.4 MB PDF
Installation guide – AN VLT® SoftStarter MCD600 PumpingSmartCard 1.9 MB PDF

3D models and drawings

Type  Name  Updated  Download  File type

There are no assets to display.


Type  Name  Updated  Version  Status  Download  File type
Software Tools Danfoss WinStart 06 Feb, 2019 1.2 Released 6.4 MB ZIP
Software Tools VLT® Motion Control Tool MCT10 17 Jan, 2019 4.40 Released 690.7 MB ZIP

Related applications

Centrifugal pumps and fans, conveyors, crushers, grinders, mixers, compressors, centrifuges, mills and saws
