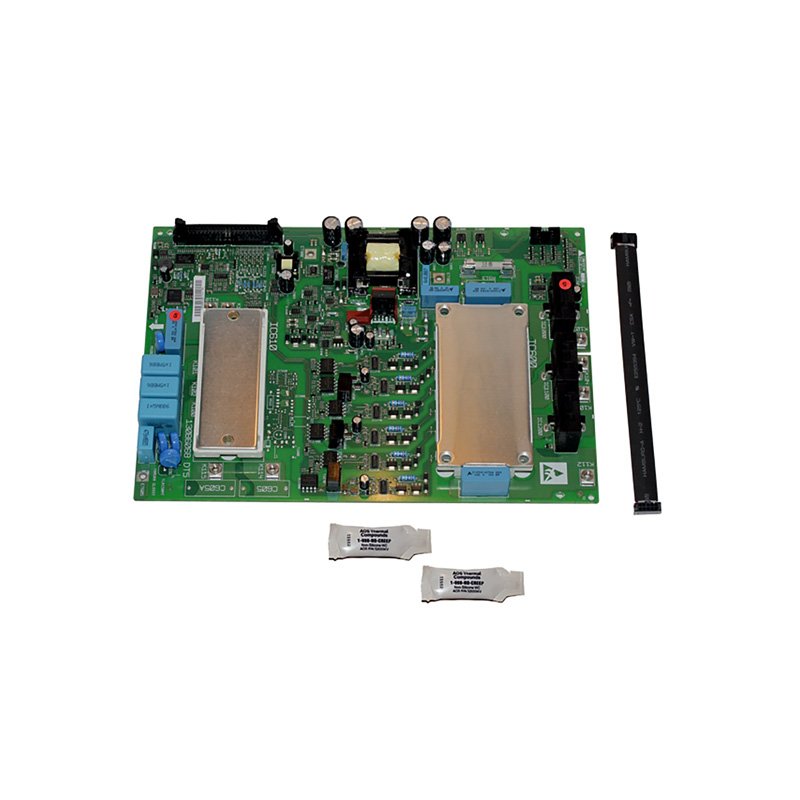

Power Card 15kW 200V
If the drive is build before April 1th 2013 replacement of the power
card is not possible and the whole drive will have to be replaced.
| Gross weight |
1.6 kg |
| Net weight |
1.4 kg |
| Volume |
11.481 dm3 |
| EAN |
5710107583898 |
| Gross weight |
1.6 kg |
| Net weight |
1.4 kg |
| Volume |
11.481 dm3 |
| EAN |
5710107583898 |
Printed Circuit Board (PCA)
| Printed Circuit Assemblies |
Power card |
| Printed Circuit Assemblies |
Power card |
SPARE PARTS FC 100 SERIES
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P15K) 15 KW / 20 HP |
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P15K) 15 KW / 20 HP |
SPARE PARTS FC 200 SERIES
| DrivePro category |
Suitcase spare part
Recommended spare part
Spare Part |
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P15K) 15 KW / 20 HP |
| DrivePro category |
Suitcase spare part
Recommended spare part
Spare Part |
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P15K) 15 KW / 20 HP |
SPARE PARTS FC 300 SERIES
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P11K) 11 KW / 15 HP |
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P11K) 11 KW / 15 HP |
SPARE PARTS FC 103 SERIES
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
15 KW / 20 HP |
| Frame Size |
B4 |
| Mains Voltage |
(2) 200 - 240 VAC |
| Phase |
(T) Three phase |
| Power Rating |
15 KW / 20 HP |
SPAREPARTS for FC-321
| /Power Rating |
(P11K) 11 KW / 15 HP |
| /Voltage |
Three phase 200-240 VAC |
| /Power Rating |
(P11K) 11 KW / 15 HP |
| /Voltage |
Three phase 200-240 VAC |
