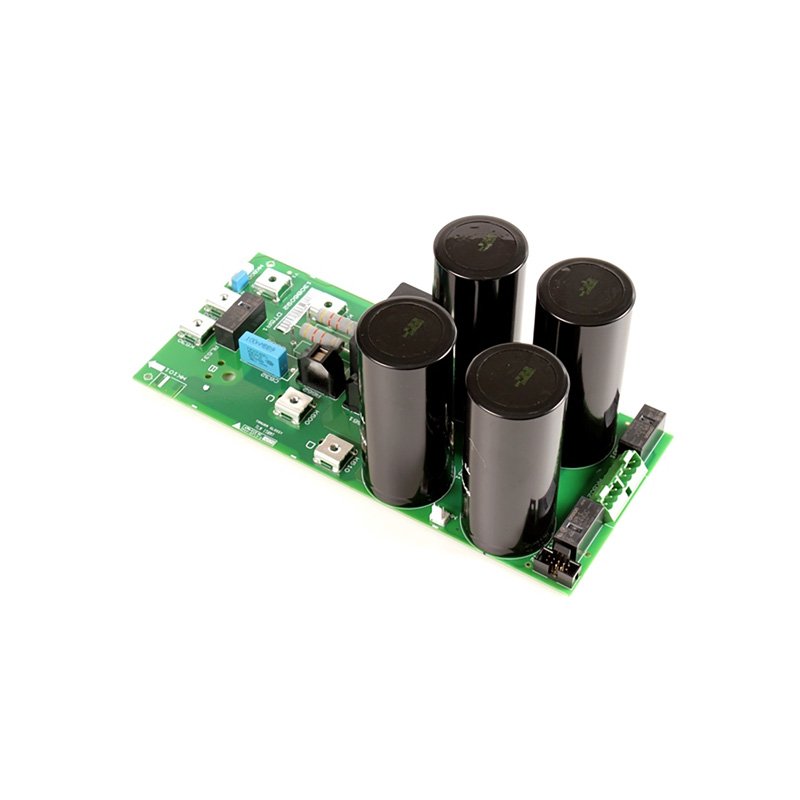

DC Link Card 22kW 400/500V H5 filter
| Gross weight |
1.7 kg |
| Net weight |
1.5 kg |
| Volume |
20.459 dm3 |
| EAN |
5710107583393 |
| Gross weight |
1.7 kg |
| Net weight |
1.5 kg |
| Volume |
20.459 dm3 |
| EAN |
5710107583393 |
Printed Circuit Board (PCA)
| Printed Circuit Assemblies |
DC link |
| Printed Circuit Assemblies |
DC link |
SPARE PARTS FC 100 SERIES
| DrivePro category |
Spare Part |
| Frame Size |
B4 |
| Mains Voltage |
(4) 380 - 480 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P22K) 22 KW / 30 HP |
| RFI Filter |
(H5) Maritime use excl. EMC. |
| DrivePro category |
Spare Part |
| Frame Size |
B4 |
| Mains Voltage |
(4) 380 - 480 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P22K) 22 KW / 30 HP |
| RFI Filter |
(H5) Maritime use excl. EMC. |
SPARE PARTS FC 200 SERIES
| Frame Size |
B4 |
| Mains Voltage |
(4) 380 - 480 VAC
(5) 380 - 500 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P22K) 22 KW / 30 HP |
| RFI Filter |
(H5) Maritime use excl. EMC. |
| Frame Size |
B4 |
| Mains Voltage |
(4) 380 - 480 VAC
(5) 380 - 500 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P22K) 22 KW / 30 HP |
| RFI Filter |
(H5) Maritime use excl. EMC. |
SPARE PARTS FC 300 SERIES
| Frame Size |
B4 |
| Mains Voltage |
(A) 380 - 400 VAC
(5) 380 - 500 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P18K) 18.5 KW / 25 HP |
| RFI Filter |
(H5)Marine,ruggedis RFI A2(C3) |
| Frame Size |
B4 |
| Mains Voltage |
(A) 380 - 400 VAC
(5) 380 - 500 VAC |
| Phase |
(T) Three phase |
| Power Rating |
(P18K) 18.5 KW / 25 HP |
| RFI Filter |
(H5)Marine,ruggedis RFI A2(C3) |
SPARE PARTS FC 103 SERIES
| Frame Size |
B4 |
| Mains Voltage |
(4) 380 - 480 VAC |
| Phase |
(T) Three phase |
| Power Rating |
22 KW / 30 HP |
| RFI Filter |
(H5) Maritime use excl. EMC. |
| Frame Size |
B4 |
| Mains Voltage |
(4) 380 - 480 VAC |
| Phase |
(T) Three phase |
| Power Rating |
22 KW / 30 HP |
| RFI Filter |
(H5) Maritime use excl. EMC. |
