131B0259 FC-302P1K5T2E20H1BXCXXXSXXXXAXBXCXXXXDX
  • SKU: 131B0259

131B0259 FC-302P1K5T2E20H1BXCXXXSXXXXAXBXCXXXXDX

GET A QUOTE
FC-302P1K5T2E20H1BXCXXXSXXXXAXBXCXXXXDX

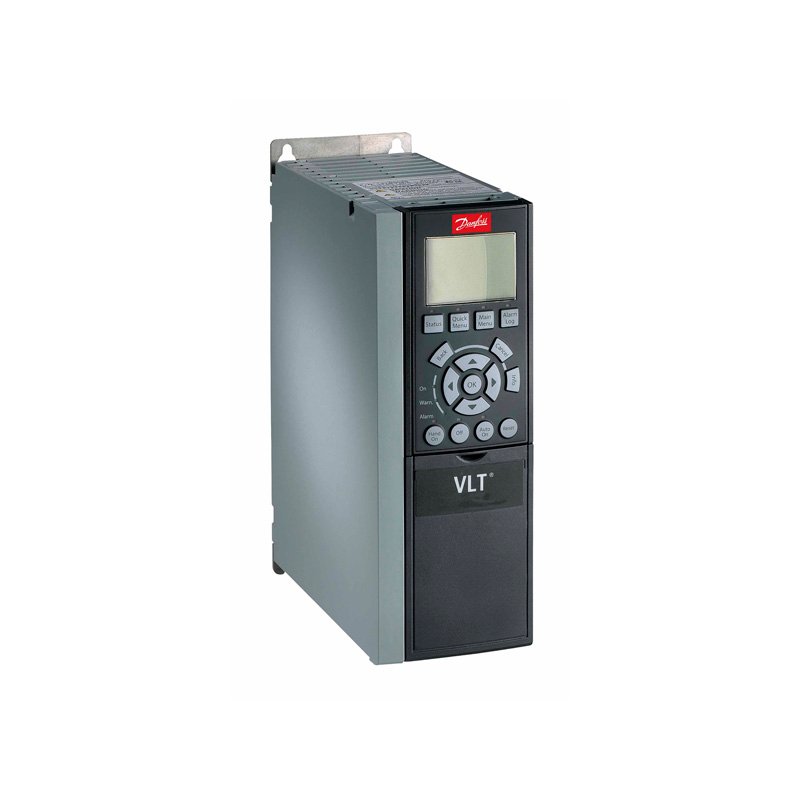

Frequency converter
FC-302P1K5T2E20H1BXCXXXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-302
(P1K5) 1.5 KW / 2.0 HP, Three phase
200 - 240 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
Brake chopper
No Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A2

Other options according to Model code



Model code :
FC-302P1K5T2E20H1BXCXXXSXXXXAXBXCXXXXDX

The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.


Gross weight 5 kg
Net weight 4.41 kg
Volume 16.53 l
EAN 5710107185580


VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AutomationDrive FC-
Series 302 302
Power Rating P1K5 (P1K5) 1.5 KW / 2.0 HP
Phase T Three phase
Mains Voltage 2 200 - 240 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H1 (H1) RFI Class A1/B (C1)
Brake - Safe Stop B Brake chopper
LCP X No Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option DX No D option
Frame Size A2 A2
Typecode Part 1 FC-302P1K5T2E20H1BXC
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO_VIEW NO VIEW
Power 160% (HO) [KW] 1.5
Height [mm] 268,0
Width w/ no C options [mm] 90,0
Depth [mm] 205,0
Depth with Option A/B [mm] 220,0
kVA 2.7
Power Loss HO [W] 82
Continuous Current (HO) [A] 7.5
Intermittent Current (HO) [A] 12
Calculated Gross Weight [kg] 4.8
Calculated Net Weight [kg] 4.5
Material Gross Weight 5
Material Net Weight 4.41
Vendor ERR01 Cannot Determine Vendor
Modelcode01 FC-302P1K5T2E20H1BXC
Modelcode02 XXXSXXXXAXBXCXXXXDX
