131B0292 FC-302P1K1T2E20H2BXXXXXSXXXXAXBXCXXXXDX
  • SKU: 131B0292

131B0292 FC-302P1K1T2E20H2BXXXXXSXXXXAXBXCXXXXDX

GET A QUOTE
FC-302P1K1T2E20H2BXXXXXSXXXXAXBXCXXXXDX

Frequency converter
FC-302P1K1T2E20H2BXXXXXSXXXXAXBXCXXXXDX

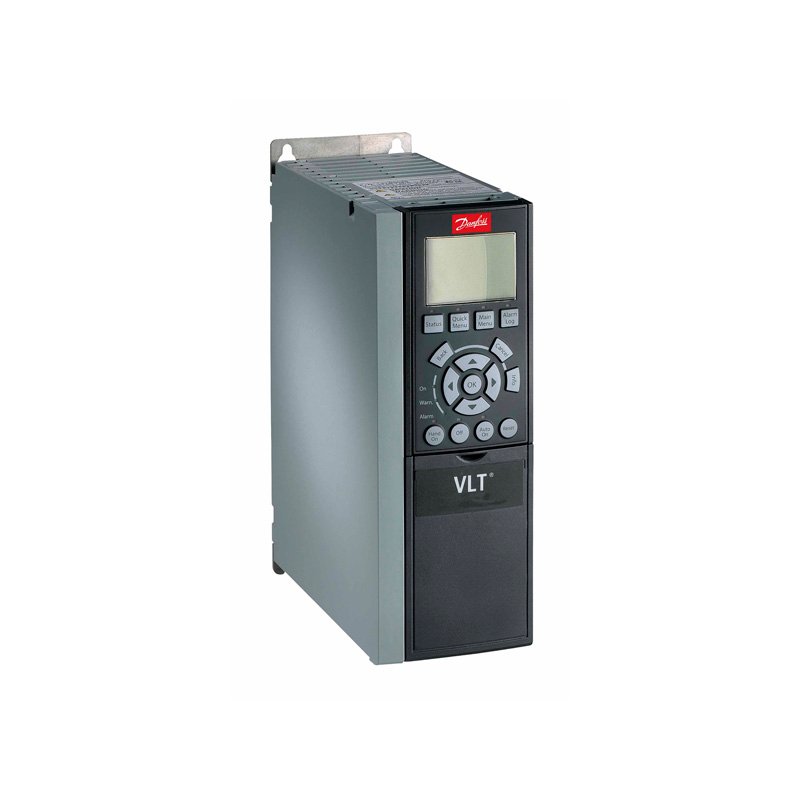

VLT® AutomationDrive FC-302
(P1K1) 1.1 KW / 1.5 HP, Three phase
200 - 240 VAC, (E20) IP20 / Chassis
RFI Filter
Brake chopper
No Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A2

Other options according to Model code



Model code :
FC-302P1K1T2E20H2BXXXXXSXXXXAXBXCXXXXDX

The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.


Gross weight 5.1 kg
Net weight 4.8 kg
Volume 16.53 l
EAN 5702427169548


VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AutomationDrive FC-
Series 302 302
Power Rating P1K1 (P1K1) 1.1 KW / 1.5 HP
Phase T Three phase
Mains Voltage 2 200 - 240 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H2 RFI Filter
Brake - Safe Stop B Brake chopper
LCP X No Loc. Cont. Panel
Coating PCB X Not coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option DX No D option
Frame Size A2 A2
Typecode Part 1 FC-302P1K1T2E20H2BXX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO_VIEW NO VIEW
Power 160% (HO) [KW] 1.1
Height [mm] 268,0
Width w/ no C options [mm] 90,0
Depth [mm] 205,0
Depth with Option A/B [mm] 220,0
kVA 2.38
Power Loss HO [W] 63
Continuous Current (HO) [A] 6.6
Intermittent Current (HO) [A] 10.6
Calculated Gross Weight [kg] 4.8
Calculated Net Weight [kg] 4.5
Material Gross Weight 5.1
Material Net Weight 4.8
Vendor ERR01 Cannot Determine Vendor
Modelcode01 FC-302P1K1T2E20H2BXX
Modelcode02 XXXSXXXXAXBXCXXXXDX
