131B0297 FC-302PK25T2E20H2XGXXXXSXXXXAXBXCXXXXDX
  • SKU: 131B0297

131B0297 FC-302PK25T2E20H2XGXXXXSXXXXAXBXCXXXXDX

GET A QUOTE
FC-302PK25T2E20H2XGXXXXSXXXXAXBXCXXXXDX

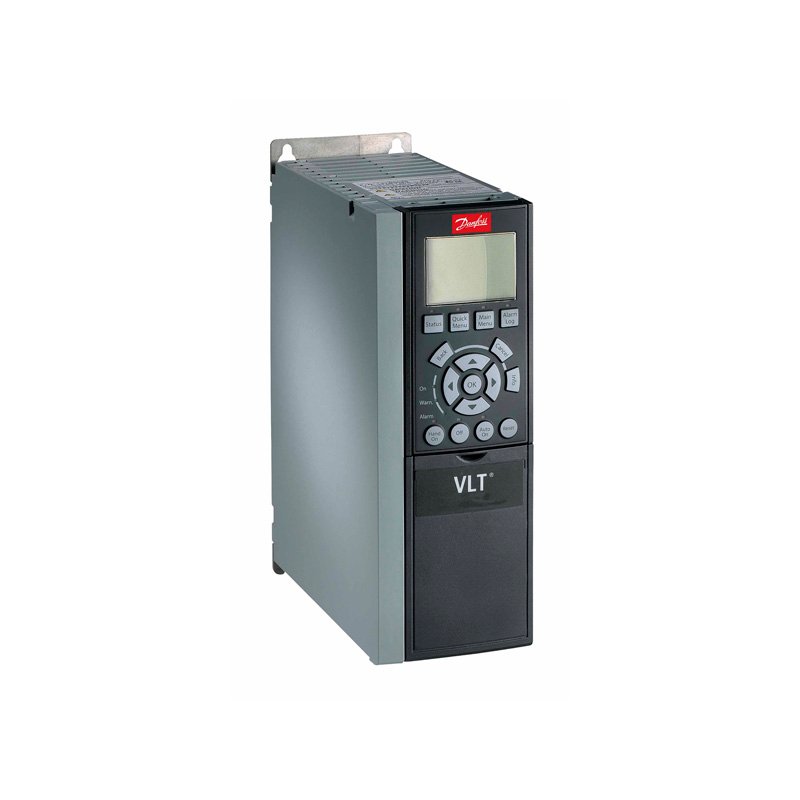

Frequency converter
FC-302PK25T2E20H2XGXXXXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-302
(PK25) 0.25 KW / 0.33 HP, Three phase
200 - 240 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A2

Other options according to Model code



Model code :
FC-302PK25T2E20H2XGXXXXSXXXXAXBXCXXXXDX

The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.


Gross weight 4.54 kg
Net weight 3.95 kg
Volume 16.53 l
EAN 5702427103627


VLT® AUTOMATIONDRIVE FC 300 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AutomationDrive FC-
Series 302 302
Power Rating PK25 (PK25) 0.25 KW / 0.33 HP
Phase T Three phase
Mains Voltage 2 200 - 240 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB X Not coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option DX No D option
Frame Size A2 A2
Typecode Part 1 FC-302PK25T2E20H2XGX
Typecode Part 2 XXXSXXXXAXBXCXXXXDX
Product Catalog NO_VIEW NO VIEW
Power 160% (HO) [KW] 0.25
Height [mm] 268,0
Width w/ no C options [mm] 90,0
Depth [mm] 205,0
Depth with Option A/B [mm] 220,0
kVA 0.65
Power Loss HO [W] 21
Continuous Current (HO) [A] 1.8
Intermittent Current (HO) [A] 2.88
Calculated Gross Weight [kg] 4.8
Calculated Net Weight [kg] 4.5
Material Gross Weight 4.54
Material Net Weight 3.95
Vendor ERR01 Cannot Determine Vendor
Modelcode01 FC-302PK25T2E20H2XGX
Modelcode02 XXXSXXXXAXBXCXXXXDX
