FC-302P5K5T5E20H1BGXXXXSXXXXA0BXCXXXXDX
Frequency converter
FC-302P5K5T5E20H1BGXXXXSXXXXA0BXCXXXXDX

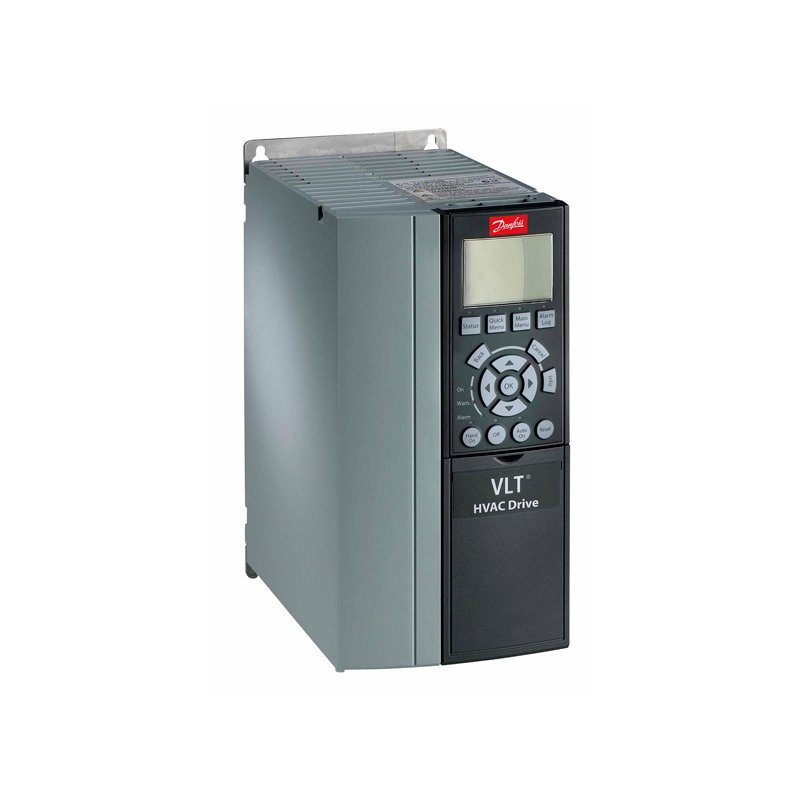

VLT® AutomationDrive FC-302
(P5K5) 5.5 KW / 7.5 HP, Three phase
380 - 500 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
Brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
No C1 option, No D option
Frame: A3
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
Gross weight | 7.44 kg |
Net weight | 6.85 kg |
Volume | 29.754 l |
EAN | 5702427174665 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AutomationDrive FC- |
Series | 302 | 302 |
Power Rating | P5K5 | (P5K5) 5.5 KW / 7.5 HP |
Phase | T | Three phase |
Mains Voltage | 5 | 380 - 500 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | B | Brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | A0 | PROFIBUS DP MCA 101 |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | A3 | A3 |
Typecode Part 1 | FC-302P5K5T5E20H1BGX | |
Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
Power 160% (HO) [KW] | 5.5 | |
Height [mm] | 268,0 | |
Width w/ no C options [mm] | 130,0 | |
Depth [mm] | 205,0 | |
Depth with Option A/B [mm] | 220,0 | |
kVA | 9.01 | |
Power Loss HO [W] | 187 | |
Power Loss HO [W] | 187 | |
Continuous Current (HO) [A] | 13 | |
Intermittent Current (HO) [A] | 20.8 | |
Continuous Current (HO) [A] | 11 | |
Intermittent Current (HO) [A] | 17.6 | |
Calculated Gross Weight [kg] | 7.19 | |
Calculated Net Weight [kg] | 6.66 | |
Material Gross Weight | 7.44 | |
Material Net Weight | 6.85 | |
Vendor | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-302P5K5T5E20H1BGX | |
Modelcode02 | XXXSXXXXA0BXCXXXXDX |
