Frequency converter
FC-301PK55T4Z20H3XGXXXXSXXXXA0BXCXXXXDX

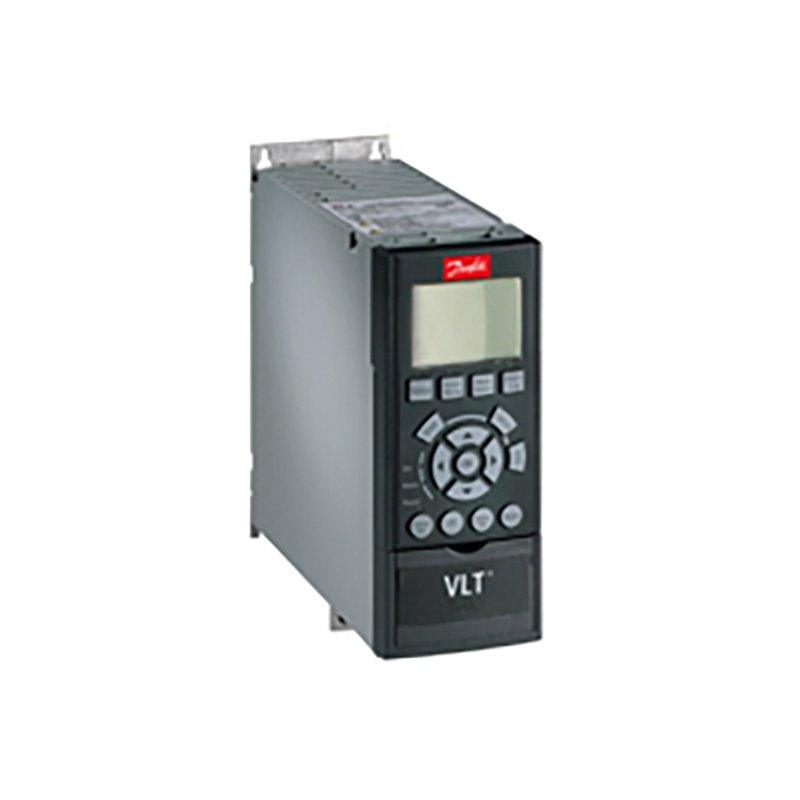

VLT® AutomationDrive FC-301
0.55 KW / 0.75 HP, Three phase
380 - 480 VAC, IP20 / Chassis A1 Frame
(H3) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
No C1 option, No D option
Frame: A1
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 3.42 kg |
| Net weight | 2.7 kg |
| Volume | 16.53 l |
| EAN | 5702427176270 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 301 | 301 |
| Power Rating | PK55 | 0.55 KW / 0.75 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | Z20 | IP20 / Chassis A1 Frame |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | A0 | PROFIBUS DP MCA 101 |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | A1 | A1 |
| Typecode Part 1 | FC-301PK55T4Z20H3XGX | |
| Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 160% (HO) [KW] | 0.55 | |
| Height [mm] | 200,0 | |
| Width w/ no C options [mm] | 75,0 | |
| Depth [mm] | 207,0 | |
| Depth with Option A/B [mm] | 222,0 | |
| kVA | 1.25 | |
| Power Loss HO [W] | 42 | |
| Power Loss HO [W] | 42 | |
| Continuous Current (HO) [A] | 1.8 | |
| Intermittent Current (HO) [A] | 2.88 | |
| Continuous Current (HO) [A] | 1.6 | |
| Intermittent Current (HO) [A] | 2.56 | |
| Calculated Gross Weight [kg] | 3 | |
| Calculated Net Weight [kg] | 2.7 | |
| Material Gross Weight | 3.42 | |
| Material Net Weight | 2.7 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-301PK55T4Z20H3XGX | |
| Modelcode02 | XXXSXXXXA0BXCXXXXDX |
