FC-102P11KT4E66H1XGCXXXSXXXXAXBXCXXXXDX
Frequency Converter
FC-102P11KT4E66H1XGCXXXSXXXXAXBXCXXXXDX

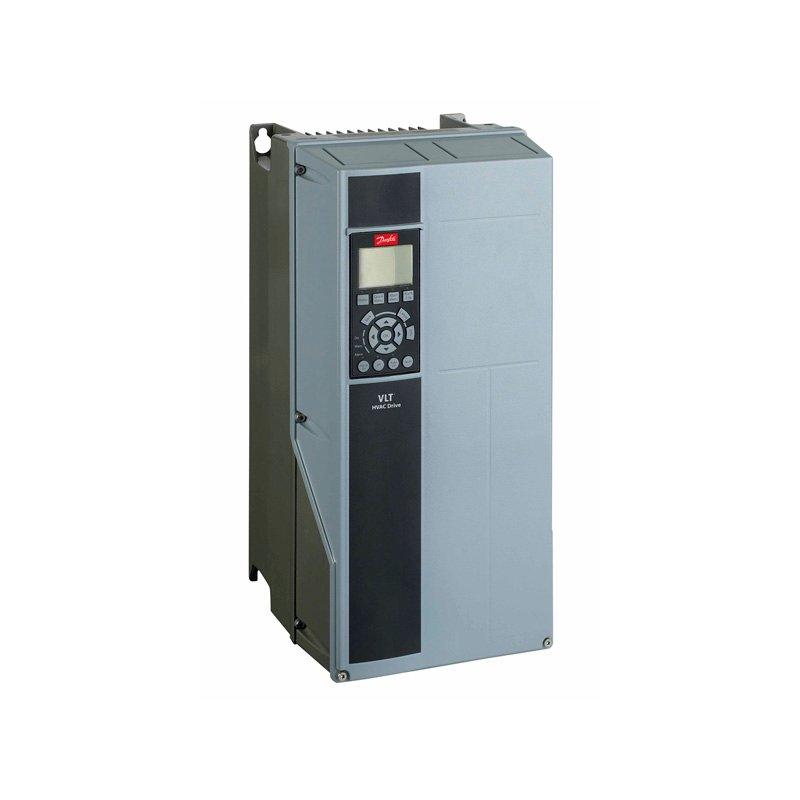

VLT® HVAC Drive FC-102
(P11K) 11 KW / 15 HP, Three phase
380 - 480 VAC, (E66) IP66 / NEMA 4X
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B1
Other options according to Model code
Danfoss Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful sta.
Gross weight | 22.425 kg |
Net weight | 22.125 kg |
Volume | 144.67 l |
EAN | 5702427370265 |
Matr grp for sales restriction | 0001 | No grouping |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® HVAC Drive FC- |
Series | 102 | 102 |
Power Rating | P11K | (P11K) 11 KW / 15 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E66 | (E66) IP66 / NEMA 4X |
RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | B1 | B1 |
Product Catalog | GLBL | Global (Standard) |
Typecode Part 1 | FC-102P11KT4E66H1XGC | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Power 110% (NO) [KW] | 11 | |
Height [mm] | 480,0 | |
Width w/ no C options [mm] | 242,0 | |
Depth [mm] | 260,0 | |
Depth with Option A/B [mm] | 260,0 | |
kVA | 16.6 | |
Power Loss NO [W] | 278 | |
Power Loss NO [W] | 278 | |
Continuous Current (NO) [A] | 24 | |
Intermittent Current (NO) [A] | 26.4 | |
Continuous Current (NO) [A] | 21 | |
Intermittent Current (NO) [A] | 23.1 | |
Calculated Gross Weight [kg] | 21.8 | |
Calculated Net Weight [kg] | 21.5 | |
Material Gross Weight | 22.425 | |
Material Net Weight | 22.125 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-102P11KT4E66H1XGC | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
