FC-102P22KT4E55H3TNXXXXSXXXXAXBXCXXXXDX
Frequency Converter
FC-102P22KT4E55H3TNXXXXSXXXXAXBXCXXXXDX

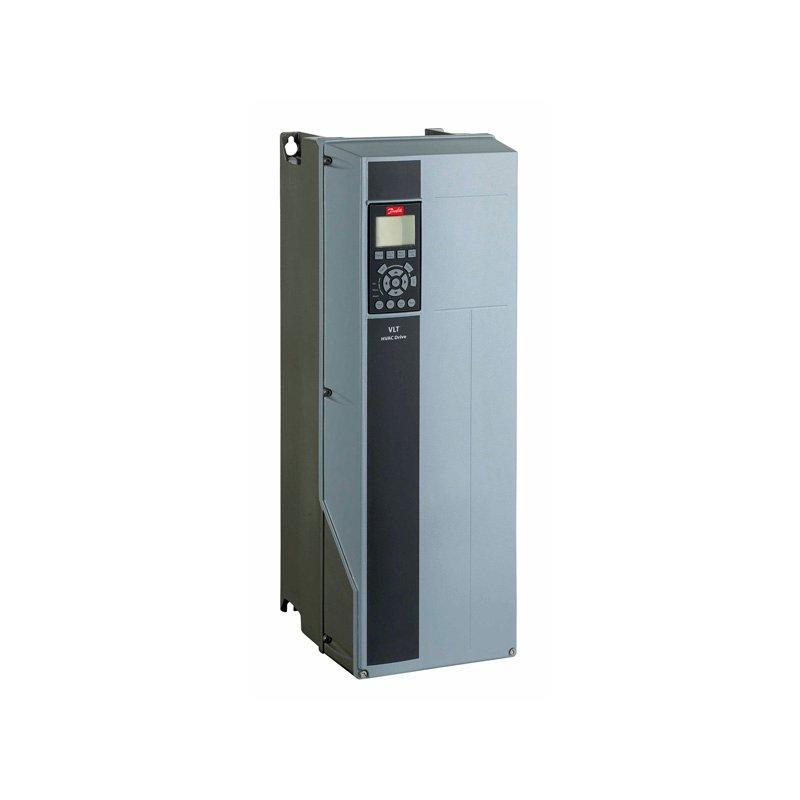

VLT® HVAC Drive FC-102
(P22K) 22 KW / 30 HP, Three phase
380 - 480 VAC, IP55 / Type 12
(H3) RFI Class A1/B (C1)
Safe Stop
Numerical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: B2
Other options according to Model code
Model code:
FC-102P22KT4E55H3TNXXXXSXXXXAXBXCXXXXDX
Danfoss Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful sta.
| Gross weight |
28.3 kg |
| Net weight |
28 kg |
| Volume |
0 l |
| EAN |
5702427372801 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® HVAC DRIVE FC 100 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® HVAC Drive FC- |
| Series |
102 |
102 |
| Power Rating |
P22K |
(P22K) 22 KW / 30 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
E55 |
IP55 / Type 12 |
| RFI Filter |
H3 |
(H3) RFI Class A1/B (C1) |
| Brake - Safe Stop |
T |
Safe Stop |
| LCP |
N |
Numerical Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
SXXX |
Latest release std. SW. |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AX |
No A Option |
| B Option |
BX |
No B Option |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
DX |
No D option |
| Frame Size |
B2 |
B2 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Typecode Part 1 |
FC-102P22KT4E55H3TNX |
| Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
| Power 110% (NO) [KW] |
22 |
| Height [mm] |
650,0 |
| Width w/ no C options [mm] |
242,0 |
| Depth [mm] |
260,0 |
| Depth with Option A/B [mm] |
260,0 |
| kVA |
30.5 |
| Power Loss NO [W] |
525 |
| Power Loss NO [W] |
525 |
| Continuous Current (NO) [A] |
44 |
| Intermittent Current (NO) [A] |
48.4 |
| Continuous Current (NO) [A] |
40 |
| Intermittent Current (NO) [A] |
44 |
| Calculated Gross Weight [kg] |
28.9 |
| Calculated Net Weight [kg] |
28.6 |
| Material Gross Weight |
28.3 |
| Material Net Weight |
28 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
| Modelcode01 |
FC-102P22KT4E55H3TNX |
| Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
