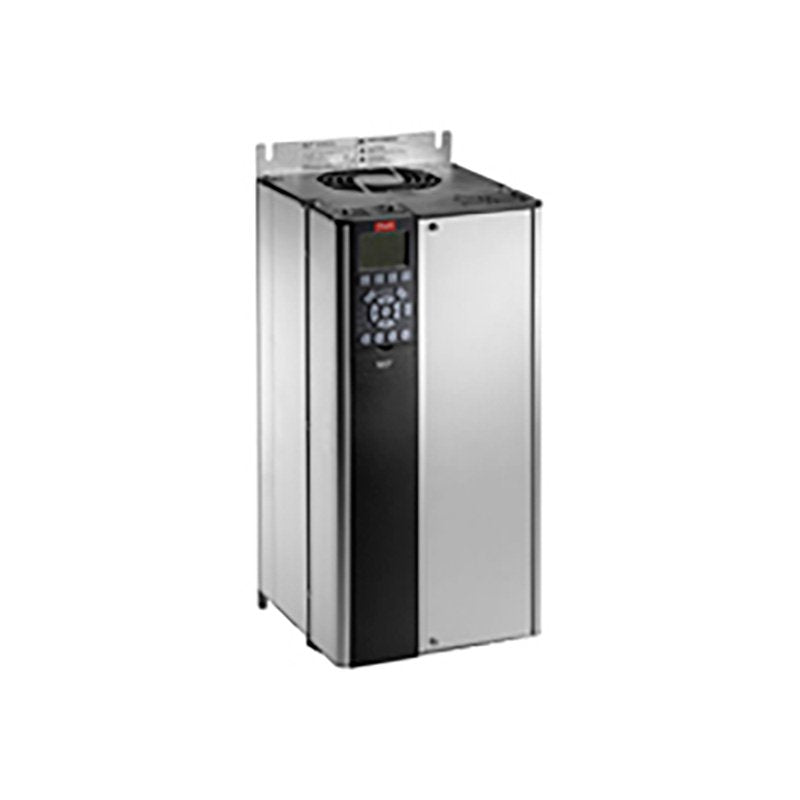

Frequency converter
FC-202P30KT4E20H3XGCXXXSXXXXAXBKCXXXXDX
VLT® AQUA Drive FC-202
(P30K) 30 KW / 40 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H3) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, MCB-101 General purp. I/O
No C1 option, No D option
Frame: B4
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
Gross weight | 25.3 kg |
Net weight | 25 kg |
Volume | 144.67 l |
EAN | 5702427710030 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | P30K | (P30K) 30 KW / 40 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H3 | (H3) RFI Class A1/B (C1) |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BK | MCB-101 General purp. I/O |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | B4 | B4 |
Typecode Part 1 | FC-202P30KT4E20H3XGC | |
Typecode Part 2 | XXXSXXXXAXBKCXXXXDX | |
Product Catalog | GLBL | Global (Standard) |
Power 160% (HO) [KW] | 22 | |
Power 110% (NO) [KW] | 30 | |
Height [mm] | 520,0 | |
Width w/ no C options [mm] | 230,0 | |
Depth [mm] | 242,0 | |
Depth with Option A/B [mm] | 242,0 | |
kVA | 42.3 | |
Power Loss NO [W] | 739 | |
Power Loss NO [W] | 739 | |
Power Loss HO [W] | 547 | |
Power Loss HO [W] | 547 | |
Continuous Current (NO) [A] | 61 | |
Intermittent Current (NO) [A] | 67.1 | |
Continuous Current (NO) [A] | 52 | |
Intermittent Current (NO) [A] | 57.2 | |
Continuous Current (HO) [A] | 44 | |
Intermittent Current (HO) [A] | 70.4 | |
Continuous Current (HO) [A] | 40 | |
Intermittent Current (HO) [A] | 64 | |
Calculated Gross Weight [kg] | 20.8 | |
Calculated Net Weight [kg] | 20.5 | |
Material Gross Weight | 25.3 | |
Material Net Weight | 25 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202P30KT4E20H3XGC | |
Modelcode02 | XXXSXXXXAXBKCXXXXDX |
