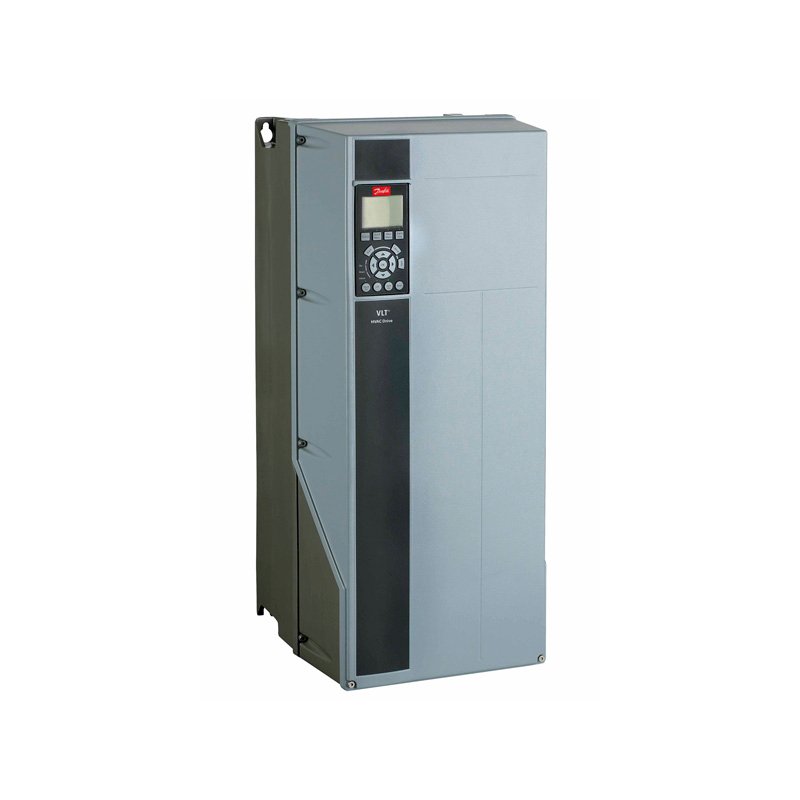

Frequency converter
FC-202P37KT4E55H1XGCXXXSXXXXAXBKCXXXXDX
VLT® AQUA Drive FC-202
(P37K) 37 KW / 50 HP, Three phase
380 - 480 VAC, IP55 / Type 12
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, MCB-101 General purp. I/O
No C1 option, No D option
Frame: C1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 41.9 kg |
| Net weight | 41.2 kg |
| Volume | 188.19 l |
| EAN | 5702427710368 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P37K | (P37K) 37 KW / 50 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | E55 | IP55 / Type 12 |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BK | MCB-101 General purp. I/O |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | C1 | C1 |
| Typecode Part 1 | FC-202P37KT4E55H1XGC | |
| Typecode Part 2 | XXXSXXXXAXBKCXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Power 150% (HO) [KW] | 30 | |
| Power 110% (NO) [KW] | 37 | |
| Height [mm] | 680,0 | |
| Width w/ no C options [mm] | 308,0 | |
| Depth [mm] | 310,0 | |
| Depth with Option A/B [mm] | 310,0 | |
| kVA | 50.6 | |
| Power Loss NO [W] | 698 | |
| Power Loss NO [W] | 698 | |
| Power Loss HO [W] | 570 | |
| Power Loss HO [W] | 570 | |
| Continuous Current (NO) [A] | 73 | |
| Intermittent Current (NO) [A] | 80.3 | |
| Continuous Current (NO) [A] | 65 | |
| Intermittent Current (NO) [A] | 71.5 | |
| Continuous Current (HO) [A] | 61 | |
| Intermittent Current (HO) [A] | 91.5 | |
| Continuous Current (HO) [A] | 52 | |
| Intermittent Current (HO) [A] | 78 | |
| Calculated Gross Weight [kg] | 40.3 | |
| Calculated Net Weight [kg] | 40 | |
| Material Gross Weight | 41.9 | |
| Material Net Weight | 41.2 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P37KT4E55H1XGC | |
| Modelcode02 | XXXSXXXXAXBKCXXXXDX |
