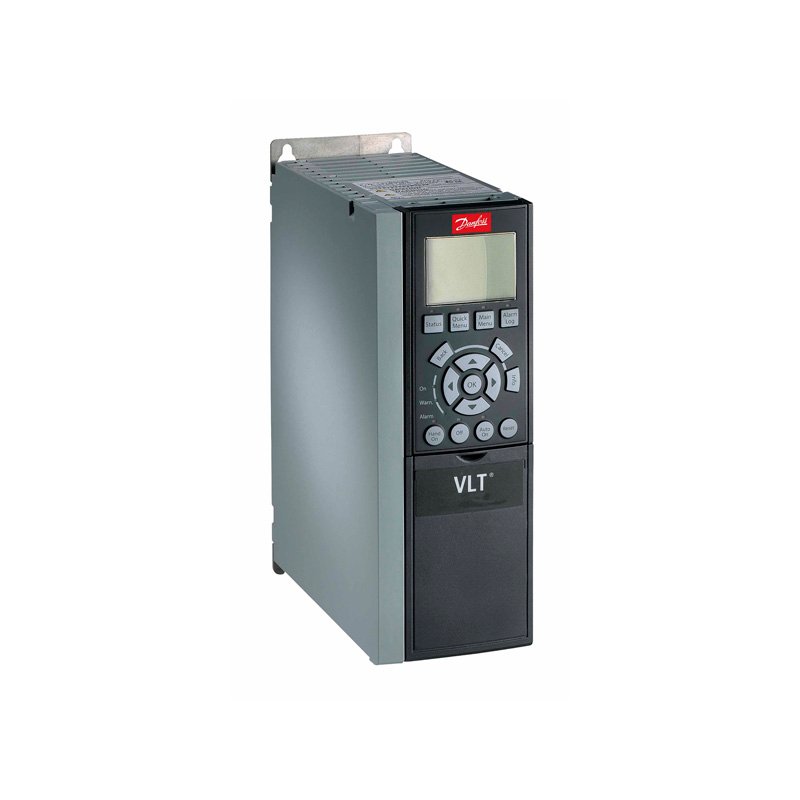

Frequency converter
FC-202PK75T2E20H1XGXXXXSXXXXA0BXCXXXXDX
VLT® AQUA Drive FC-202
(PK75) 0.75 KW / 1.0 HP, Three phase
200 - 240 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
PROFIBUS DP MCA 101, No B Option
No C1 option, No D option
Frame: A2
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
Gross weight | 5.1 kg |
Net weight | 4.8 kg |
Volume | 16.53 l |
EAN | 5702427777286 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | PK75 | (PK75) 0.75 KW / 1.0 HP |
Phase | T | Three phase |
Mains Voltage | 2 | 200 - 240 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | X | Not coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | A0 | PROFIBUS DP MCA 101 |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | A2 | A2 |
Typecode Part 1 | FC-202PK75T2E20H1XGX | |
Typecode Part 2 | XXXSXXXXA0BXCXXXXDX | |
Product Catalog | GLBL | Global (Standard) |
Power 150% (HO) [KW] | 0.75 | |
Power 110% (NO) [KW] | 0.75 | |
Height [mm] | 268,0 | |
Width w/ no C options [mm] | 90,0 | |
Depth [mm] | 205,0 | |
Depth with Option A/B [mm] | 220,0 | |
kVA | 1.66 | |
Power Loss NO [W] | 54 | |
Continuous Current (NO) [A] | 4.6 | |
Intermittent Current (NO) [A] | 5.06 | |
Calculated Gross Weight [kg] | 4.8 | |
Calculated Net Weight [kg] | 4.5 | |
Material Gross Weight | 5.1 | |
Material Net Weight | 4.8 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202PK75T2E20H1XGX | |
Modelcode02 | XXXSXXXXA0BXCXXXXDX |
